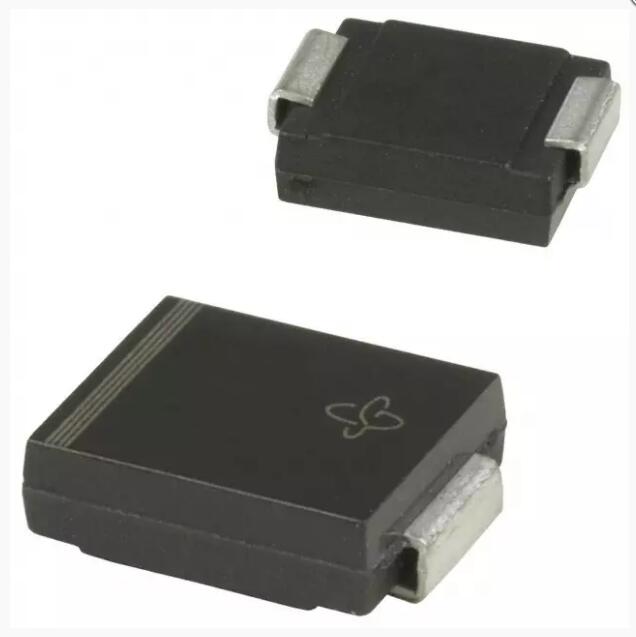

VISHAY 1.5SMC33CA-E3/57T TVS二极管, AEC-Q449, AEC-Q101 TRANSZORB 1.5SMC系列, 双向, 28.2 V, 45.7 V, DO-214AB, 2 引脚
The TRANSZORB 1.5SMC series surface-mount Transient Voltage Suppressor Diode offers 1500W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -65 to 150°C Operating junction temperature range
工作电压 28.2 V
电路数 1
针脚数 2
钳位电压 45.7 V
最大反向击穿电压 34.7 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 31.4 V
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通用, Automotive, Lighting, Communications & Networking, 车用, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5SMC33CA-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1.5SMC33CA-E3/9AT 威世 | 类似代替 | 1.5SMC33CA-E3/57T和1.5SMC33CA-E3/9AT的区别 |
1.5SMC33CA-M3/9AT 威世 | 类似代替 | 1.5SMC33CA-E3/57T和1.5SMC33CA-M3/9AT的区别 |
1.5SMC33CA-M3/57T 威世 | 类似代替 | 1.5SMC33CA-E3/57T和1.5SMC33CA-M3/57T的区别 |
