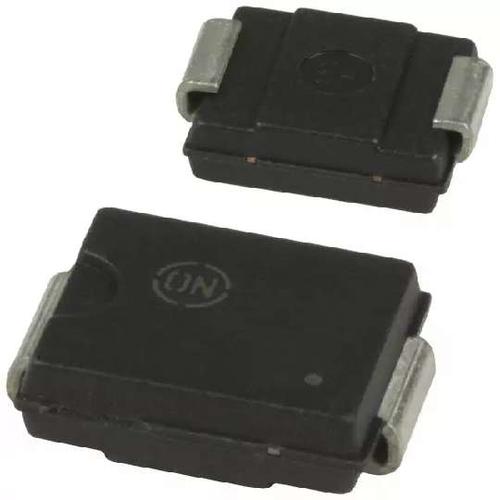

1SMC58AT3G

1500W 齐纳瞬态电压抑制器（单向）SMC 系列设计用于保护电压敏感组件抵抗高电压和高能量瞬变。 它们具有极佳的钳位能力、高浪涌能力、低齐纳阻抗和快速响应时间。峰值功率 − 1500W @ 1.0ms 3 类 ESD 等级> 16kV/人体模型 最高钳位电压 @ 峰值脉冲电流 低泄漏 UL 497B，用于隔离回路保护 指定了最大温度系数 响应时间通常为 ### 瞬态电压抑制器，On Semiconductor

.

The SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have

excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in ’s  exclusive,  cost-effective,  highly  reliable Surmetic package and is ideally suited for use in communication  systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

Features

•Working Peak Reverse Voltage Range − 5.0 V to 78 V

•Standard Zener Breakdown Voltage Range − 6.7 V to 91.25 V

•Peak Power − 1500 W @ 1 ms

•ESD Rating of Class 3 >16 KV per Human Body Model

•Maximum Clamp Voltage @ Peak Pulse Current

•Low Leakage < 5 A Above 10 V

•UL 497B for Isolated Loop Circuit Protection

•Maximum Temperature Coefficient Specified

•Response Time is Typically < 1 ns

•Pb−Free Packages are Available
