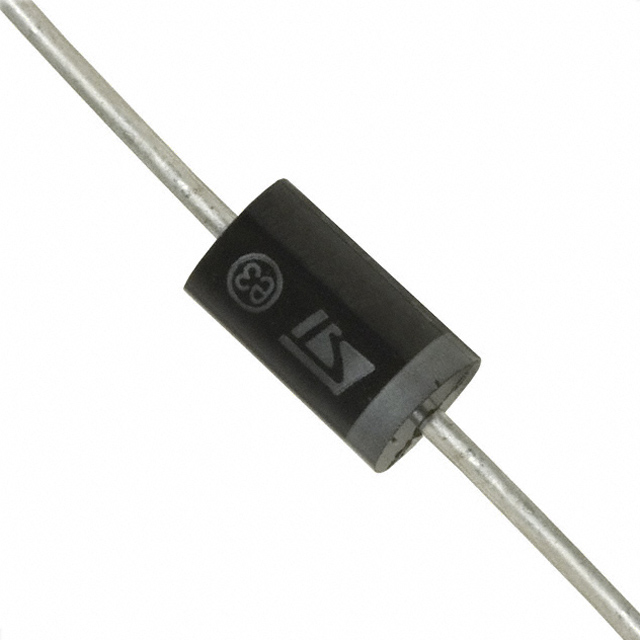

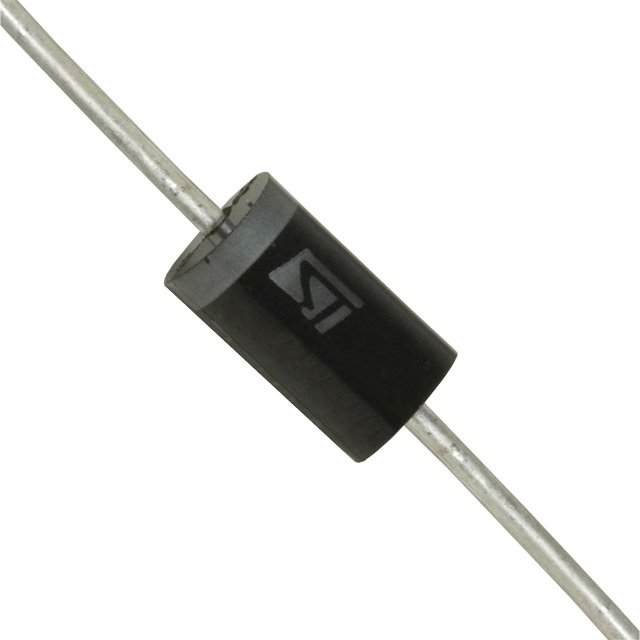

ESD 抑制器/TVS 二极管 1500W 39V Unidirect
Description
Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
Features
■ Peak pulse power: 1500 W 10/1000 µs
■ Breakdown voltage range: From 6.8 V to 440 V
■ Uni and bidirectional types
■ Low clamping factor
■ Fast response time
■ UL 497B file number: QVGQ2.E136224
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE39ARL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
1.5KE39A 意法半导体 | 功能相似 | 1.5KE39ARL和1.5KE39A的区别 |
1N6285A 安森美 | 功能相似 | 1.5KE39ARL和1N6285A的区别 |
1.5KE39 ProTek Devices | 功能相似 | 1.5KE39ARL和1.5KE39的区别 |
