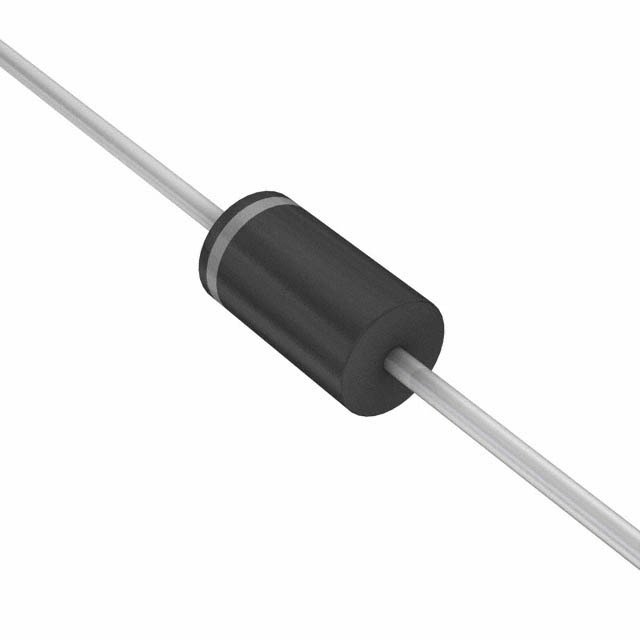

VISHAY 1.5KE36CA-E3/54 TVS二极管, AEC-Q107, AEC-Q101 TRANSZORB 1.5KE系列, 双向, 30.8 V, 49.9 V, DO-201, 2 引脚
The TRANSZORB 1.5KE series Transient Voltage Suppressor Diode offers 1500W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 175°C Operating junction temperature range
额定功率 1.5 kW
击穿电压 36 V
电路数 1
针脚数 2
耗散功率 1.5 kW
钳位电压 49.9 V
测试电流 1 mA
最大反向击穿电压 37.8 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 34.2 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-201
长度 9.5 mm
封装 DO-201
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Each
制造应用 Communications & Networking, Computers & Computer Peripherals, Lighting, Automotive, 通用, 车用, Sensing & Instrumentation, Industrial, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5KE36CA-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1.5KE36CA 力特 | 功能相似 | 1.5KE36CA-E3/54和1.5KE36CA的区别 |
1.5KE36CA-T 美台 | 功能相似 | 1.5KE36CA-E3/54和1.5KE36CA-T的区别 |
1.5KE36CA-B 美台 | 功能相似 | 1.5KE36CA-E3/54和1.5KE36CA-B的区别 |
