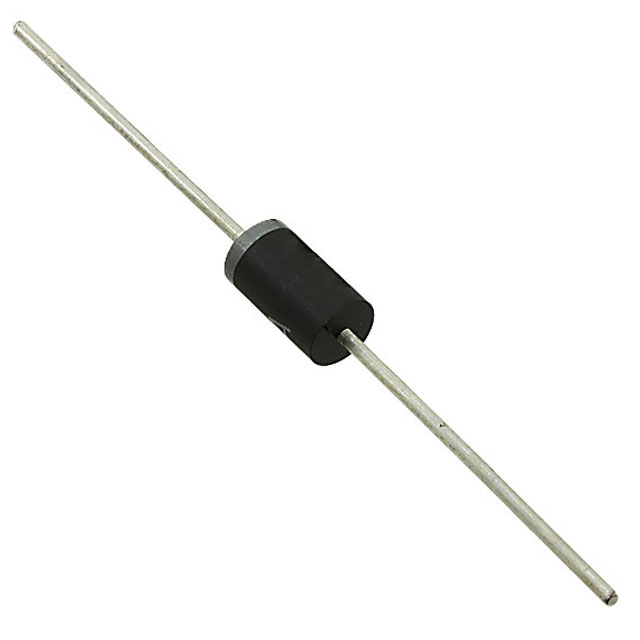

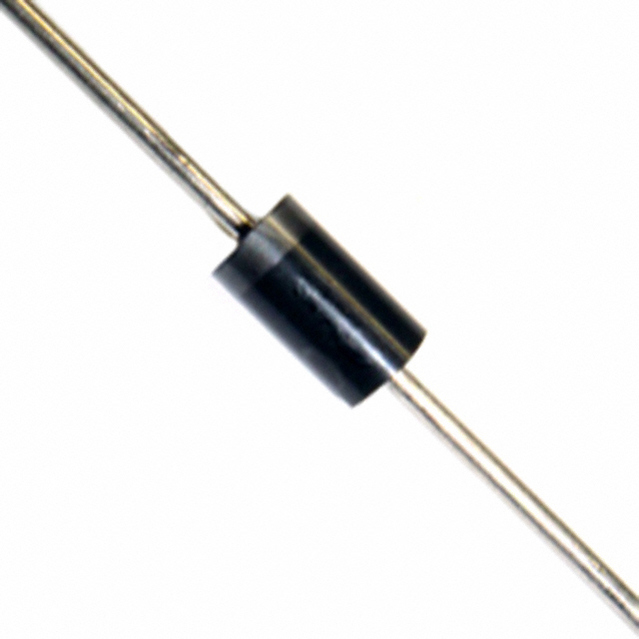

1.5KE15A-TP

单向 Vrwm:12.8V

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 12.8VWM 21.2VC DO201AE

立创商城:
单向 Vrwm:12.8V 1.5kW

艾睿:
Take the extra step in your circuitry by implementing surge protection with this 1.5KE15A-TP TVS diode from Micro Commercial Components. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 21.2 V and minimum breakdown voltage is 14.3 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
