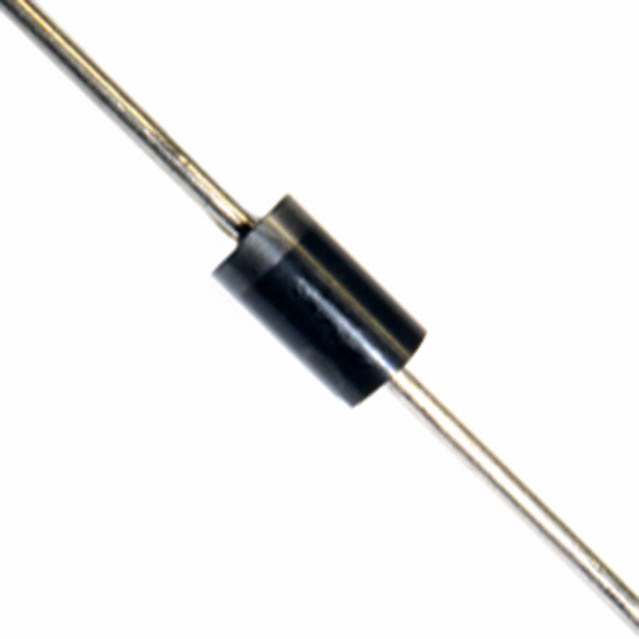

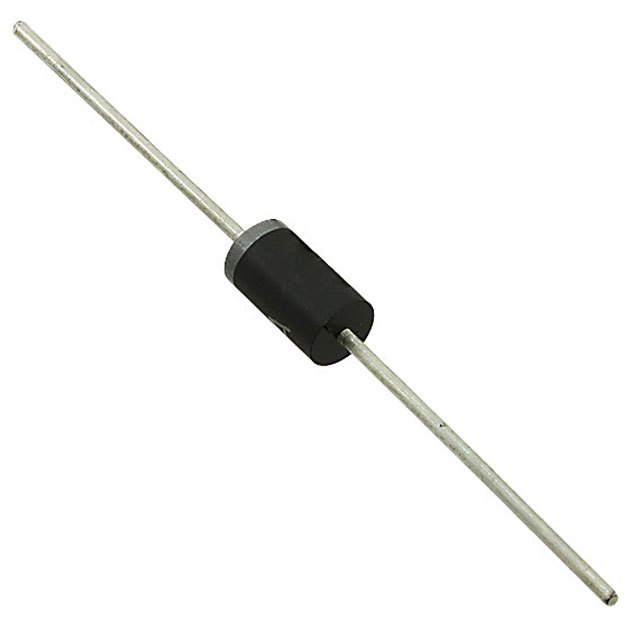

1.5KE24A-TP

单向 20.5V

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 20.5VWM 33.2VC DO201AE

立创商城:
单向 Vrwm:20.5V 1.5kW

贸泽:
ESD Suppressors / TVS Diodes UNI-DIR 1500W 45.8A

艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this 1.5KE24A-TP TVS diode from Micro Commercial Components. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 33.2 V and minimum breakdown voltage is 22.8 V. Its peak pulse power dissipation is 1500 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Uni-Dir 20.5V 1.5KW 2-Pin DO-201AE T/R

Verical:
TVS Diode Single Uni-Dir 20.5V 1.5KW 2-Pin DO-201AE T/R
