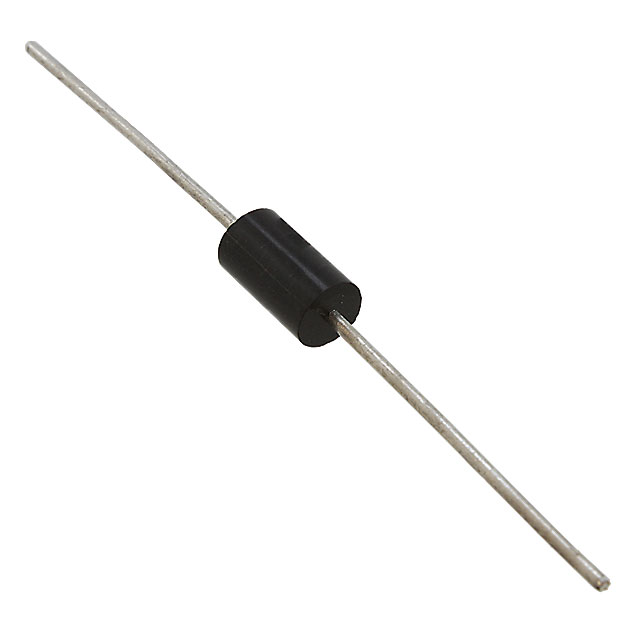

ESD 抑制器/TVS 二极管 BI-DIR 1500W 25.6A
Features
• Economical Series and Quick Response
• Available in Both Unidirectional and Bidirectional Construction
• 1500Watts Peak Power Dissipation
• Excellent Clamping Capability
• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information
• UL Recognized File#E331408
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
得捷:
TVS DIODE 36.8VWM 59.3VC DO201AE
立创商城:
双向 Vrwm:36.8V 1.5kW
贸泽:
ESD 抑制器/TVS 二极管 BI-DIR 1500W 25.6A
艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Micro Commercial Components&s; 1.5KE43CA-TP TVS diode. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 59.3 V and minimum breakdown voltage is 40.9 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Bi-Dir 36.8V 1.5KW 2-Pin DO-201AE T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE43CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N6286CA 固锝 | 类似代替 | 1.5KE43CA-TP和1N6286CA的区别 |
1.5KE43C-TP 美微科 | 类似代替 | 1.5KE43CA-TP和1.5KE43C-TP的区别 |
1.5KE43CA Diotec Semiconductor | 功能相似 | 1.5KE43CA-TP和1.5KE43CA的区别 |
