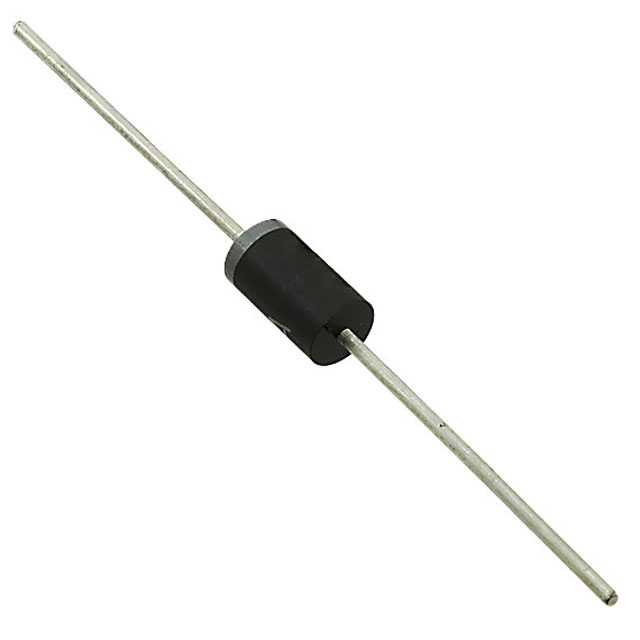

1.5KE6.8A-TP

单向 5.8V

10.5V 夹子 - Ipp TVS - 通孔 DO-201AE

立创商城:
单向 Vrwm:5.8V 1.5kW

得捷:
TVS DIODE 5.8VWM 10.5VC DO201AE

艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this 1.5KE6.8A-TP TVS diode from Micro Commercial Components. Its maximum leakage current is 1000 μA. Its test current is 10 mA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 10.5 V and minimum breakdown voltage is 6.45 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Chip1Stop:
Diode TVS Single Uni-Dir 5.8V 1.5KW 2-Pin DO-201AE T/R
