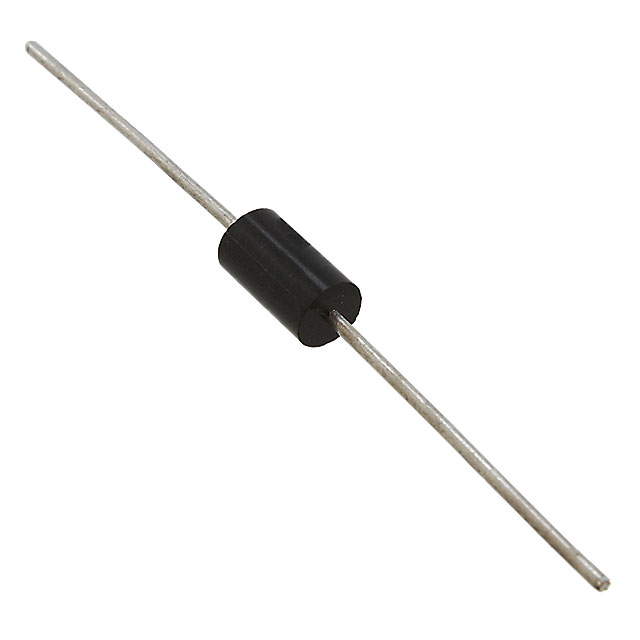

1.5KE27CA-TP

ESD 抑制器/TVS 二极管 BI-DIR 1500W 40.5A

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 23.1VWM 37.5VC DO201AE

立创商城:
Vrwm:23.1V 1.5kW

贸泽:
ESD 抑制器/TVS 二极管 BI-DIR 1500W 40.5A

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this 1.5KE27CA-TP TVS diode from Micro Commercial Components. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 37.5 V and minimum breakdown voltage is 25.7 V. Its peak pulse power dissipation is 1500 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

Chip1Stop:
Diode TVS Single Bi-Dir 23.1V 1.5KW 2-Pin DO-201AE T/R

Win Source:
TVS DIODE 23.1VWM DO201AE
