1.5KE150A-TP

单向 128V

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:

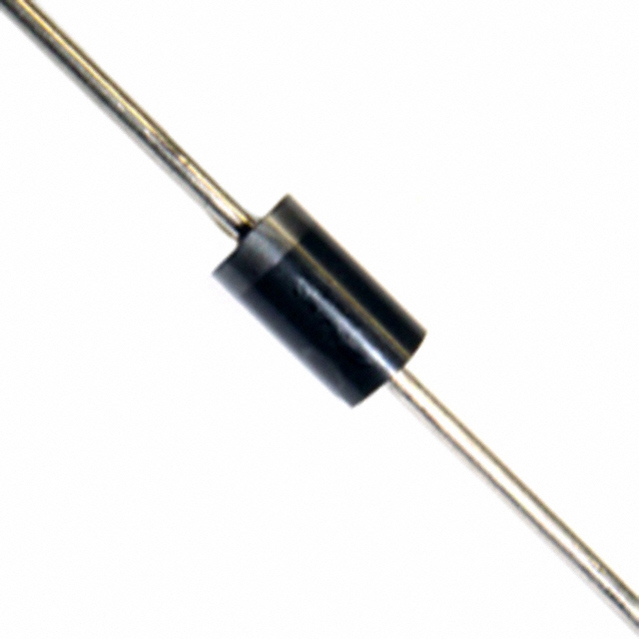

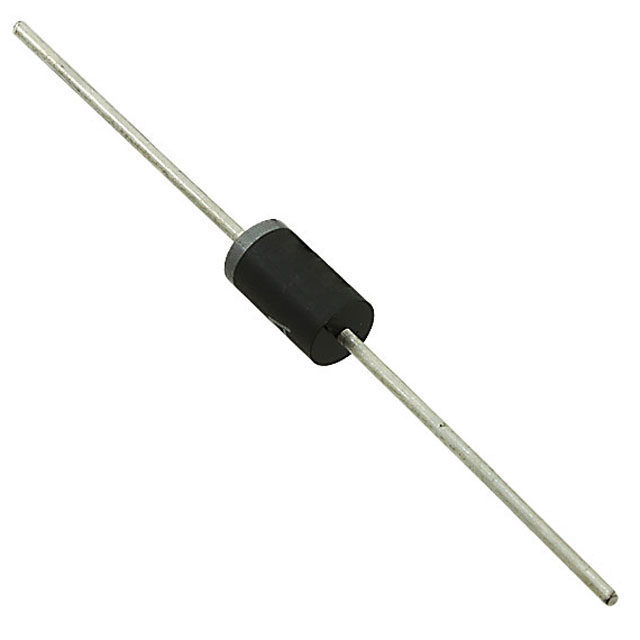

TVS DIODE 128VWM 207VC DO201AE

立创商城:
单向 Vrwm:128V 1.5kW

艾睿:
Protect your critical electronic applications from sudden overvoltage conditions with this 1.5KE150A-TP TVS diode from Micro Commercial Components. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 207 V and minimum breakdown voltage is 143 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
