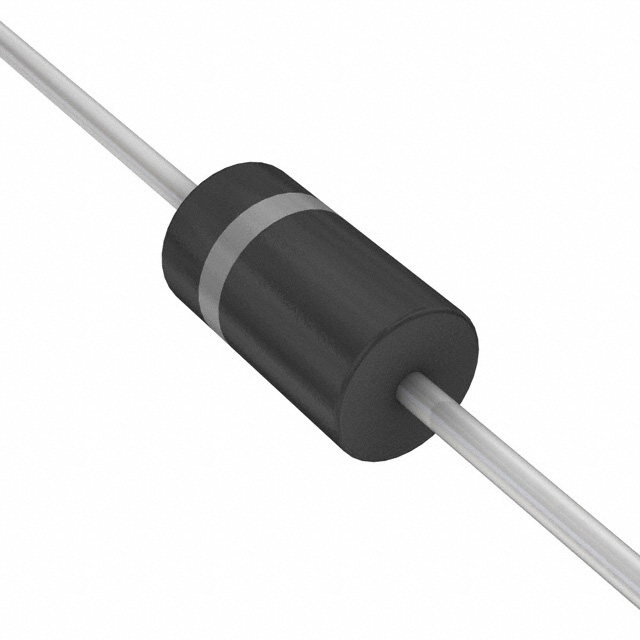

ON SEMICONDUCTOR 1.5KE6.8AG TVS二极管, TVS, MOSORB 1.5KE系列, 单向, 5.8 V, 10.5 V, 轴向引线, 2 引脚
The Mosorb 1.5KE series Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage, high-energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time. It is highly reliable Surmetic™ axial leaded and is ideally-suited for use in numerical controls medical equipment, business machines and many other applications, to protect CMOS, MOS and bipolar integrated circuits.
- .
- 5.8 to 214V Working peak reverse voltage range
- .
- 1500W @ 1ms Peak power
- .
- ESD rating of Class 3 >16kV per human body model
- .
- Maximum clamp voltage @ peak pulse current
- .
- <5µA above 10V Low leakage current
- .
- <1ns Response time
- .
- -65 to 175°C Operating temperature range
额定电压DC 6.80 V
额定功率 1.50 kW
无卤素状态 Halogen Free
击穿电压 6.45 V
电路数 1
针脚数 2
耗散功率 1500 W
钳位电压 10.5 V
最大反向电压（Vrrm） 5.8V
测试电流 10 mA
最大反向击穿电压 7.14 V
脉冲峰值功率 1500 W
最小反向击穿电压 6.45 V
击穿电压 6.45 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 41A-04
长度 9.5 mm
直径 5.30 mm
封装 41A-04
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Consumer Electronics, Industrial, 通用, Medical, Automation & Process Control, Communications & Networking, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5KE6.8AG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N6267ARL4G 安森美 | 类似代替 | 1.5KE6.8AG和1N6267ARL4G的区别 |
1.5KE6.8A 力特 | 功能相似 | 1.5KE6.8AG和1.5KE6.8A的区别 |
1.5KE6V8A 意法半导体 | 功能相似 | 1.5KE6.8AG和1.5KE6V8A的区别 |
