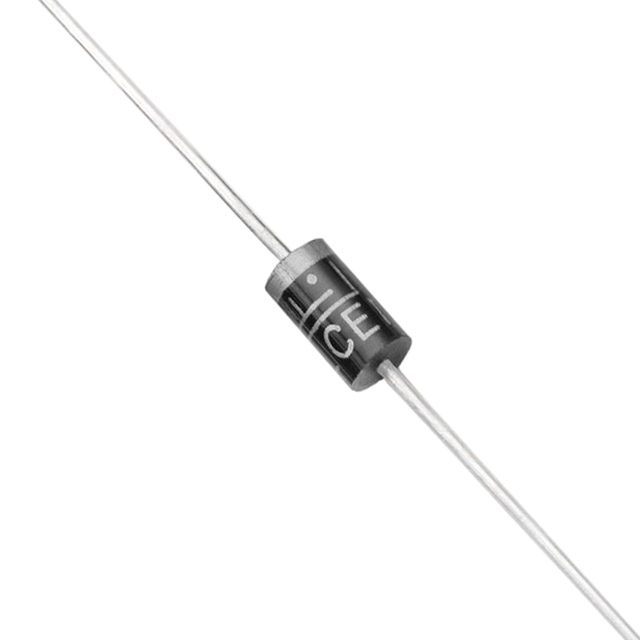

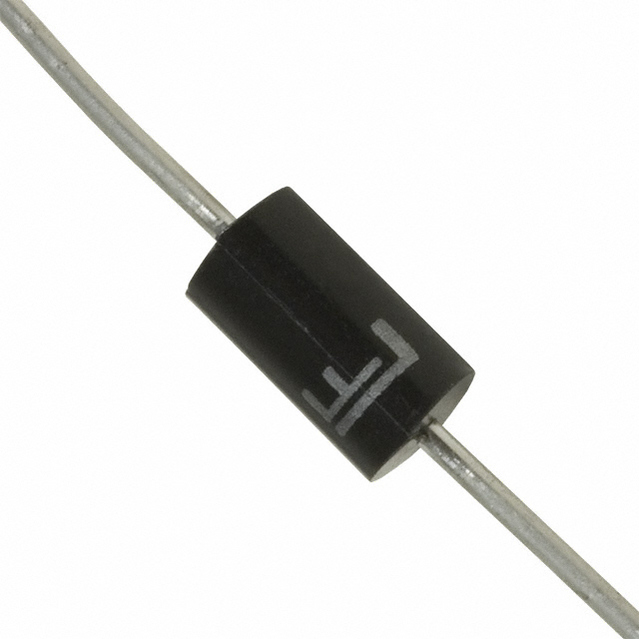

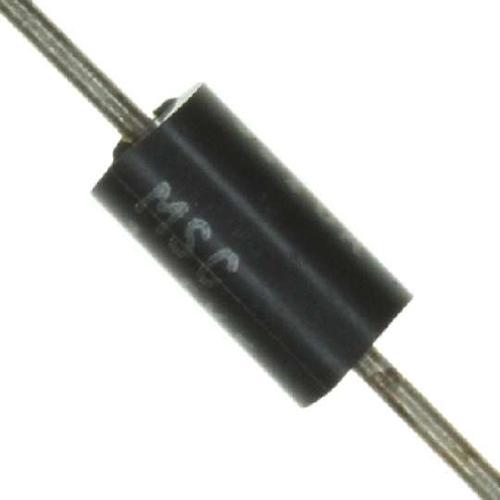

1.5KE47CA

LITTELFUSE  1.5KE47CA  二极管, TVS, 1.5KW, 47V, DO-201, 整卷

64.8V 夹子 23.5A Ipp TVS - 通孔 DO-201

得捷:
TVS DIODE 40.2VWM 64.8VC DO201

立创商城:
双向 Vrwm:40.2V 1.5kW

e络盟:
LITTELFUSE  1.5KE47CA  二极管, TVS, 1.5KW, 47V, DO-201, 整卷

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this 1.5KE47CA TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 64.8 V and minimum breakdown voltage is 44.7 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 40.2V 1.5KW 2-Pin DO-201 T/R

TME:
Diode: transil; 1.5kW; 47V; 23.5A; bidirectional; ±5%; DO201

Verical:
Diode TVS Single Bi-Dir 40.2V 1.5KW 2-Pin DO-201 T/R

Newark:
# LITTELFUSE  1.5KE47CA  TVS Diode, 1.5KE Series, Bidirectional, 40.2 V, 64.8 V, DO-201, 2 Pins

儒卓力:
**TVS-DIODE BI 1,5KW 47V DO201 **

Win Source:
TVS DIODE 40.2VWM 64.8VC AXIAL
