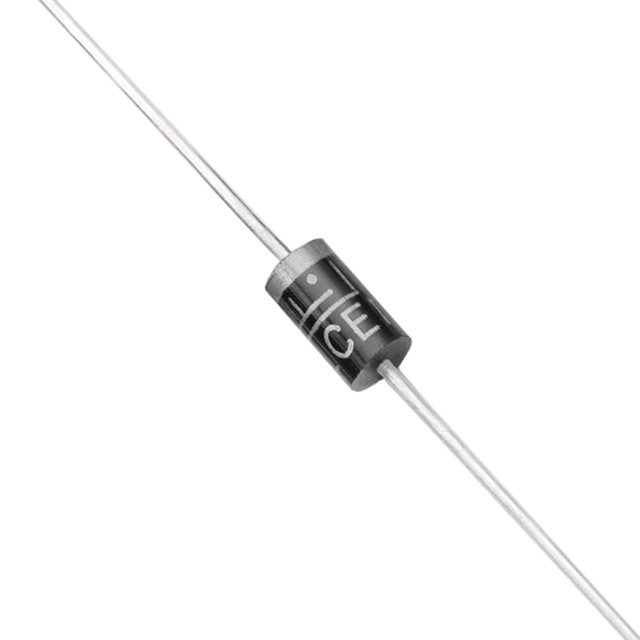

LITTELFUSE 1.5KE100A 二极管, TVS, 1.5KW, 100V, DO-201
Transient Voltage Suppression Diodes
Axial Leaded – 1500W > 1.5KE series
Description
The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
得捷:
TVS DIODE 85.5VWM 137VC DO201
e络盟:
LITTELFUSE 1.5KE100A 二极管, TVS, 1.5KW, 100V, DO-201, 整卷
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this 1.5KE100A TVS diode from Littelfuse. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 137 V and minimum breakdown voltage is 95 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 85.5V 1.5KW 2-Pin DO-201 T/R
TME:
Diode: transil; 1.5kW; 100V; 11.1A; unidirectional; ±5%; DO201
Verical:
TVS Diode Single Uni-Dir 85.5V 1.5KW 2-Pin DO-201 T/R
Newark:
# LITTELFUSE 1.5KE100A TVS Diode, 1.5KE Series, Unidirectional, 85.5 V, 137 V, DO-201, 2 Pins
击穿电压 100 V
电路数 1
针脚数 2
耗散功率 1.5 kW
钳位电压 137 V
测试电流 1 mA
最大反向击穿电压 105 V
脉冲峰值功率 1500 W
最小反向击穿电压 95 V
击穿电压 95 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-201
长度 9.50 mm
直径 5.30 mm
封装 DO-201
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE100A Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE100A-B 力特 | 完全替代 | 1.5KE100A和1.5KE100A-B的区别 |
1.5KE100A-E3/54 威世 | 类似代替 | 1.5KE100A和1.5KE100A-E3/54的区别 |
