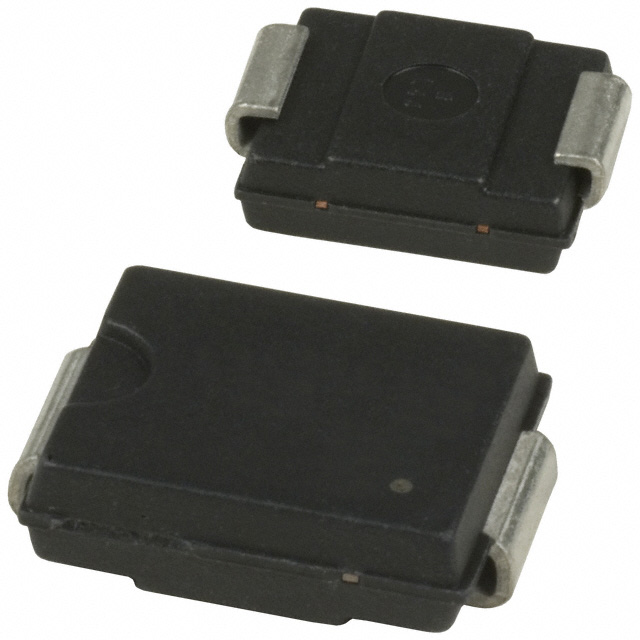

ON SEMICONDUCTOR 1.5SMC22AT3G TVS二极管, TVS, 1.5SMC Series, 单向, 18.8 V, 30.6 V, DO-214AB, 2 引脚 新
The 1.5SMC series Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.
- .
- 5.8 to 77.8V Working peak reverse voltage range
- .
- 6.8 to 91V Standard Zener breakdown voltage range
- .
- 1500W @ 1ms Peak power
- .
- ESD rating of Class 3 >16kV per human body model
- .
- Maximum clamp voltage @ peak pulse current
- .
- <5µA above 10V Low leakage current
- .
- <1ns Response time
- .
- Maximum temperature coefficient specified
- .
- -65 to 150°C Operating temperature range
无卤素状态 Halogen Free
击穿电压 20.9 V
电路数 1
针脚数 2
耗散功率 1.5 kW
钳位电压 30.6 V
最大反向电压（Vrrm） 18.8V
测试电流 1 mA
最大反向击穿电压 23.1 V
脉冲峰值功率 1500 W
最小反向击穿电压 20.9 V
击穿电压 20.9 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.13 mm
封装 SMC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 汽车级, Communications & Networking, Industrial, Automation & Process Control, Medical, Automotive, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5SMC22AT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1SMC43AT3G 安森美 | 类似代替 | 1.5SMC22AT3G和1SMC43AT3G的区别 |
1.5SMC51AT3 安森美 | 类似代替 | 1.5SMC22AT3G和1.5SMC51AT3的区别 |
1.5SMC22AT3 安森美 | 类似代替 | 1.5SMC22AT3G和1.5SMC22AT3的区别 |
