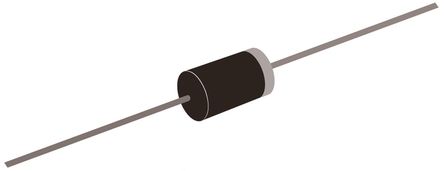

1.5KE51A-E3/54

VISHAY  1.5KE51A-E3/54  二极管, TVS, 1.5KW, 51V, 1.5KE

FEATURES

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate duty cycle: 0.01 %

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• AEC-Q101 qualified

• Solder dip 275 °C max. 10 s, per JESD 22-B106

得捷:
TVS DIODE 43.6VWM 70.1VC 1.5KE

贸泽:
ESD 抑制器/TVS 二极管 1500W 51V Unidirect

艾睿:
Diode TVS Single Uni-Dir 43.6V 1.5KW 2-Pin Case 1.5KE T/R

富昌:
1500 W 51 V 单向 通孔 瞬态电压抑制二极管

TME:
Diode: transil; 1.5kW; 51.05V; 21.4A; unidirectional; DO201

Newark:
# VISHAY  1.5KE51A-E3/54  TVS Diode, TRANSZORB 1.5KE Series, Unidirectional, 43.6 V, 70.1 V, DO-201, 2 Pins
