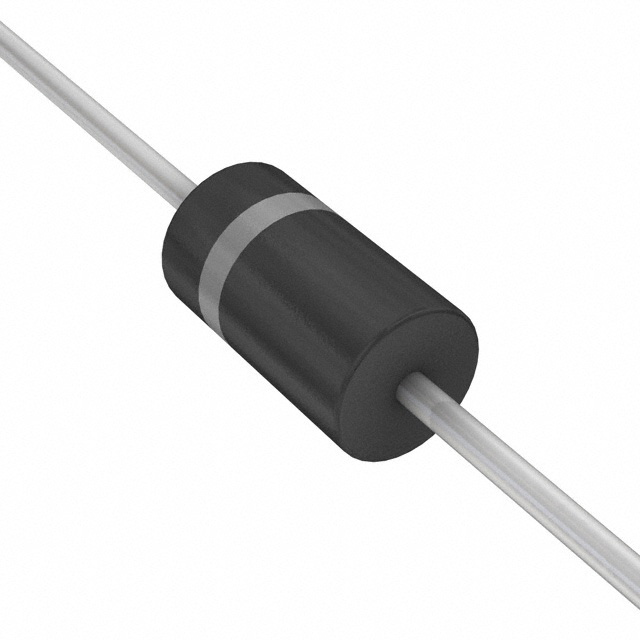

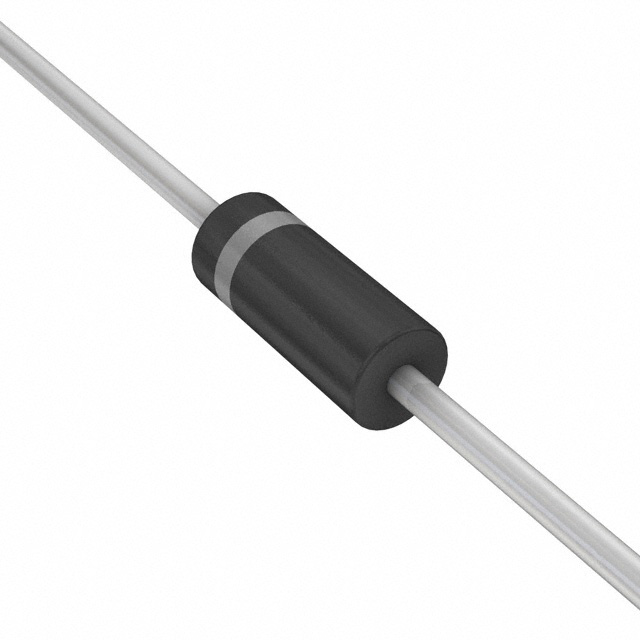

1N6276AG

ON SEMICONDUCTOR  1N6276AG  TVS二极管, TVS, MOSORB系列, 单向, 13.6 V, 22.5 V, 轴向引线, 2 引脚

The MOSORB series JEDEC Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage, high-energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time. It is highly reliable Surmetic™ axial leaded and is ideally-suited for use in numerical controls medical equipment, business machines and many other applications, to protect CMOS, MOS and bipolar integrated circuits.

.

5.8 to 214V Working peak reverse voltage range

.

1500W @ 1ms Peak power

.

ESD rating of Class 3 >16kV per human body model

.

Maximum clamp voltage @ peak pulse current

.

<5µA above 10V Low leakage current

.

<1ns Response time

.

-65 to 175°C Operating temperature range
