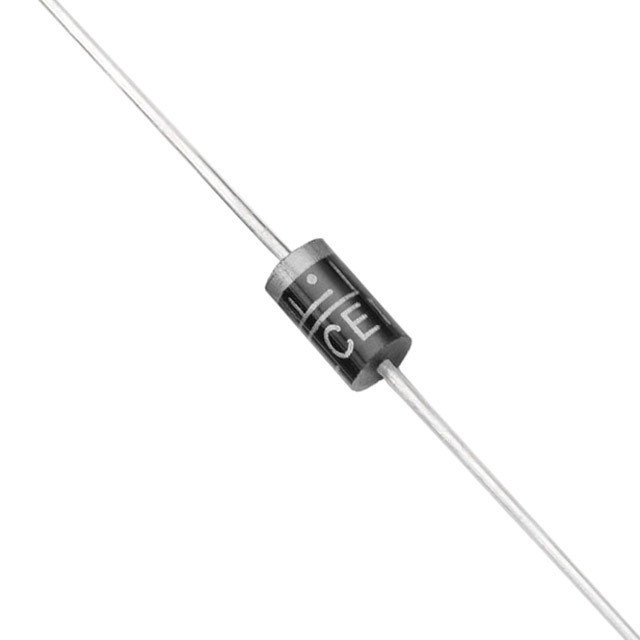

1.5KE系列 219V 1.5kW 通孔 单向 瞬态电压抑制二极管 DO-201
Transient Voltage Suppression Diodes
Axial Leaded – 1500W > 1.5KE series
Description
The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
得捷:
TVS DIODE 136VWM 219VC DO201
立创商城:
单向 Vrwm:136V 1.5kW
贸泽:
ESD 抑制器/TVS 二极管 1500W 136V Uni-Directional
艾睿:
Get protected with this 1.5KE160A TVS diode manufactured from Littelfuse. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 219 V and minimum breakdown voltage is 152 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 136V 1.5KW 2-Pin DO-201 T/R
TME:

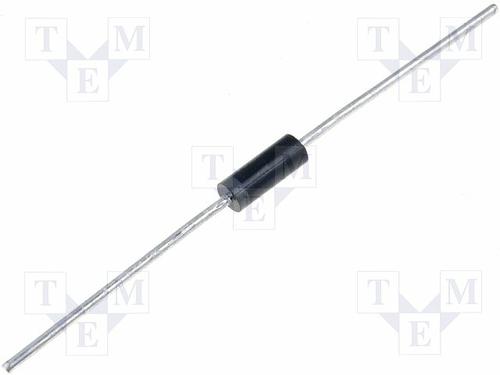

Diode: transil; 1.5kW; 160V; 6.9A; unidirectional; ±5%; DO201
Win Source:
TVS DIODE 136VWM 219VC AXIAL
额定电压DC 160 V
工作电压 136 V
额定功率 1.50 kW
击穿电压 160 V
耗散功率 1.5 kW
钳位电压 219 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 152 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

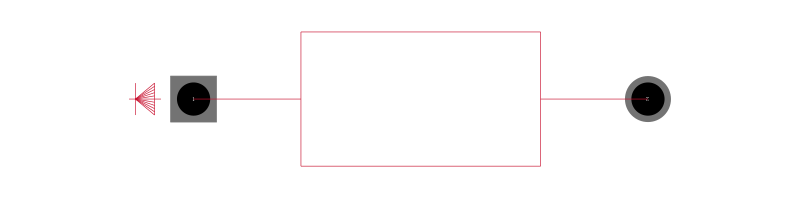

封装 DO-201-2
长度 9.5 mm
直径 5.30 mm
封装 DO-201-2
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE160A Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE160 力特 | 类似代替 | 1.5KE160A和1.5KE160的区别 |
1.5KE160A-B 力特 | 类似代替 | 1.5KE160A和1.5KE160A-B的区别 |
1.5KE160A-T 美台 | 功能相似 | 1.5KE160A和1.5KE160A-T的区别 |
