瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Transient Voltage Suppression Diodes

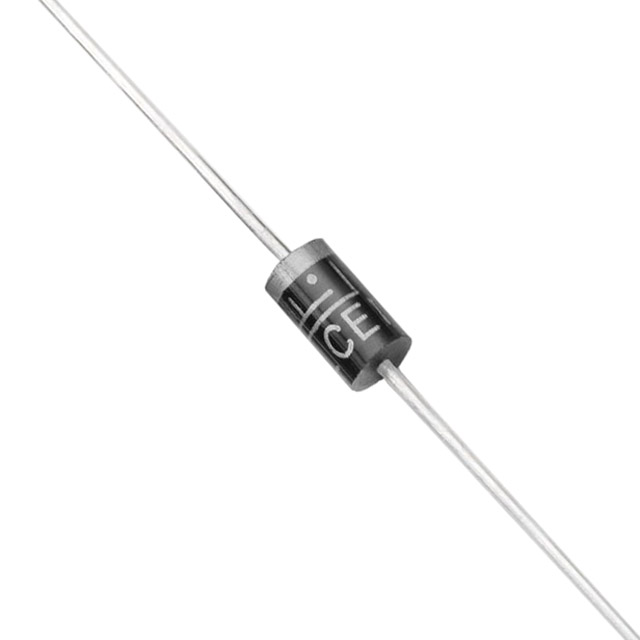

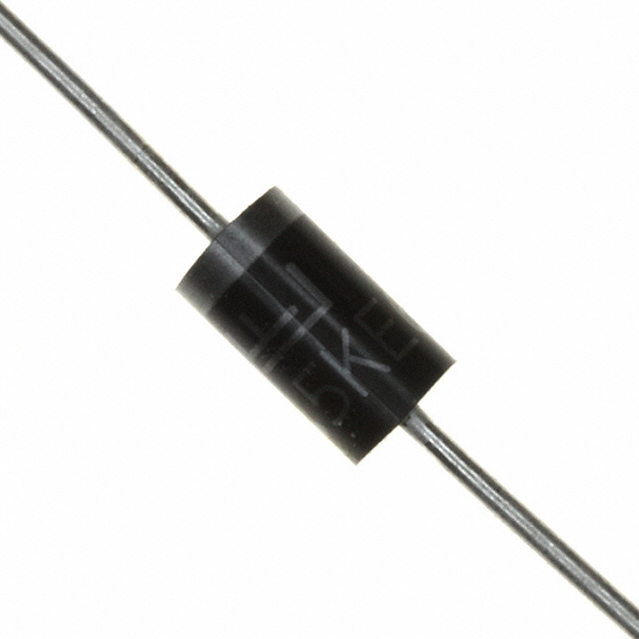

Axial Leaded – 1500W > 1.5KE series
Description
The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
得捷:
TVS DIODE 25.6VWM 41.4VC DO201
立创商城:
单向 Vrwm:25.6V 1.5kW
艾睿:
Do not risk expensive equipment and machinery from surges with this 1.5KE30A-B TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 41.4 V and minimum breakdown voltage is 28.5 V. Its peak pulse power dissipation is 1500 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product comes packaged in bulk, so the parts will be stored loosely.
Chip1Stop:
Diode TVS Single Uni-Dir 25.6V 1.5KW 2-Pin DO-201 Bulk
TME:
Diode: transil; 1.5kW; 30V; 36.7A; unidirectional; ±5%; DO201
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE30A-B Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE30A 力特 | 类似代替 | 1.5KE30A-B和1.5KE30A的区别 |
1.5KE30AG 安森美 | 功能相似 | 1.5KE30A-B和1.5KE30AG的区别 |
