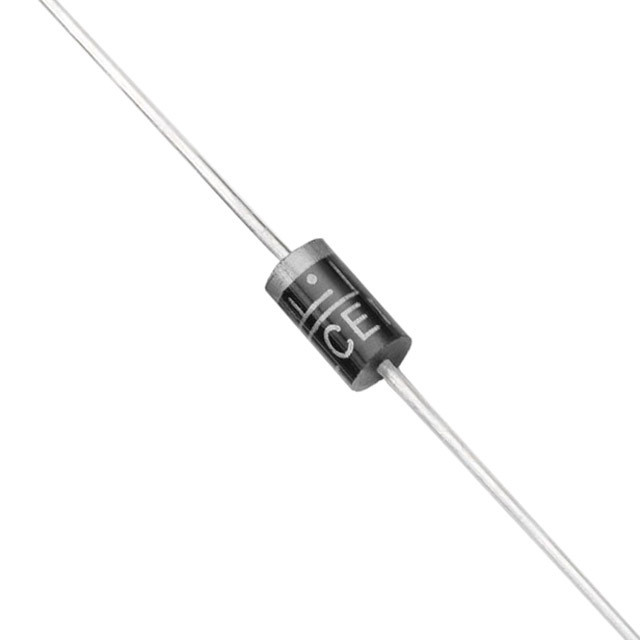

1.5KE56A-B

1.5KE 系列 53.2 V 1.5 kW 通孔 单向 TVS 二极管 - DO-201

Description

The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

得捷:
TVS DIODE 47.8VWM 77VC DO201

立创商城:
单向 Vrwm:47.8V 1.5kW

艾睿:
Take the extra step in your circuitry by implementing surge protection with this 1.5KE56A-B TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 77 V and minimum breakdown voltage is 53.2 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product comes packaged in bulk, so the parts will be stored loosely.

富昌:
1.5KE 系列 53.2 V 1.5 kW 通孔 单向 TVS 二极管 - DO-201

Chip1Stop:
Diode TVS Single Uni-Dir 47.8V 1.5KW 2-Pin DO-201 Bulk

TME:
Diode: transil; 1.5kW; 56V; 19.7A; unidirectional; ±5%; DO201
