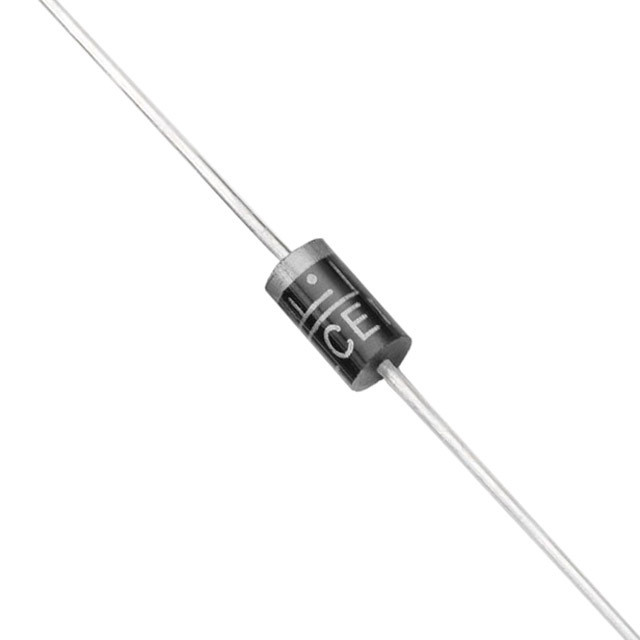

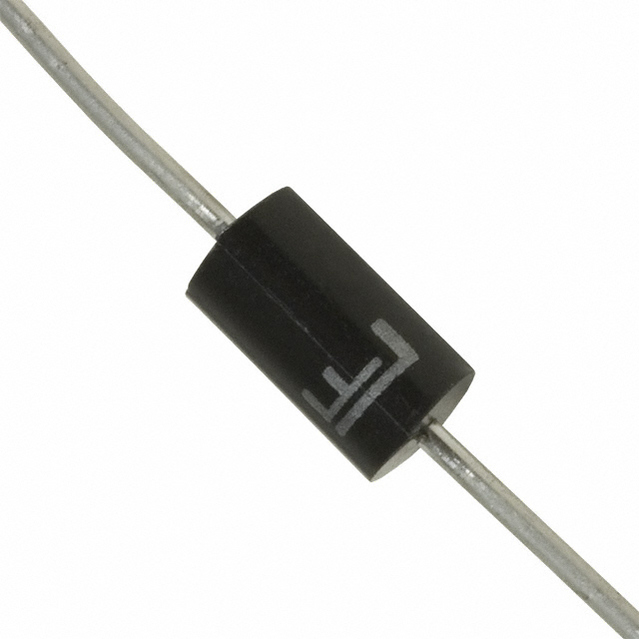

1.5KE9.1CA

硅雪崩二极管 - 1500瓦的轴向引线型瞬态电压抑制器 Silicon Avalanche Diodes - 1500 Watt Axial Leaded Transient Voltage Suppressors

Description

The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

得捷:
TVS DIODE 7.78VWM 13.4VC DO201

立创商城:
双向 Vrwm:7.78V 1.5kW

贸泽:
ESD 抑制器/TVS 二极管 1500W 7.78V Bi-Directional

艾睿:
Sleep easy, never worry about surges again with this 1.5KE9.1CA TVS diode from Littelfuse. This device&s;s maximum clamping voltage is 13.4 V and minimum breakdown voltage is 8.65 V. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. Its maximum leakage current is 100 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

TME:
Diode: transil; 1.5kW; 9.1V; 113.4A; bidirectional; ±5%; DO201
