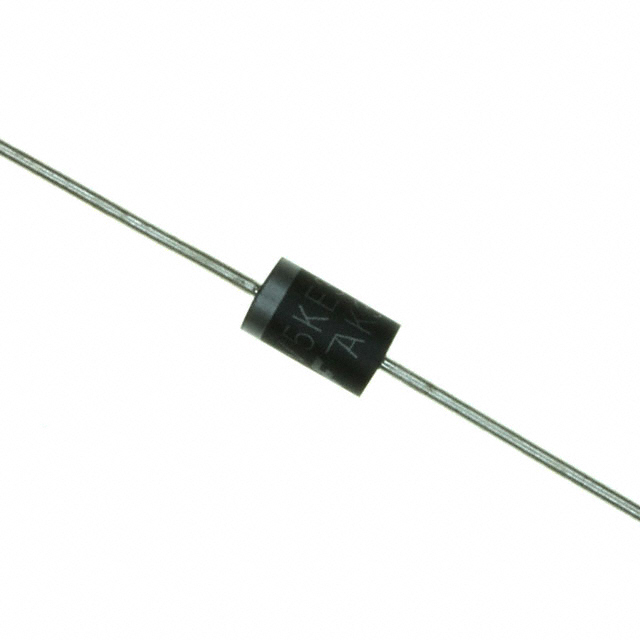

1V5KE300A

瞬态电压抑制器 Transient Voltage Suppressors

Transient Voltage Suppressors

Features

• Glass passivated junction.

• 1500W Peak Pulse Power capability at 1.0 ms.

• Excellent clamping capability.

• Low incremental surge resistance.

• Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional.

• Typical IR less than 1.0 µA above 10V.

• UL certified, UL #E210467.

贸泽:
ESD 抑制器/TVS 二极管 300V 1500W Unidirectional

艾睿:
Diode TVS Single Uni-Dir 256V 1.5KW 2-Pin DO-201AE T/R

安富利:
Diode TVS Single Uni-Dir 256V 1.5KW 2-Pin DO-201AE T/R

Verical:
Diode TVS Single Uni-Dir 256V 1.5KW 2-Pin DO-201AE T/R

Newark:
# FAIRCHILD SEMICONDUCTOR  1V5KE300A  TVS Diode, 1.5KE Series, Unidirectional, 256 V, 414 V, DO-201AE, 2 Pins
