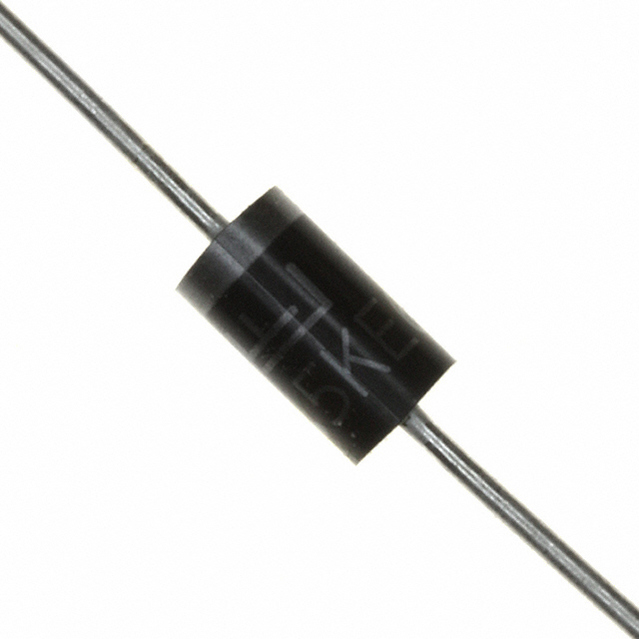

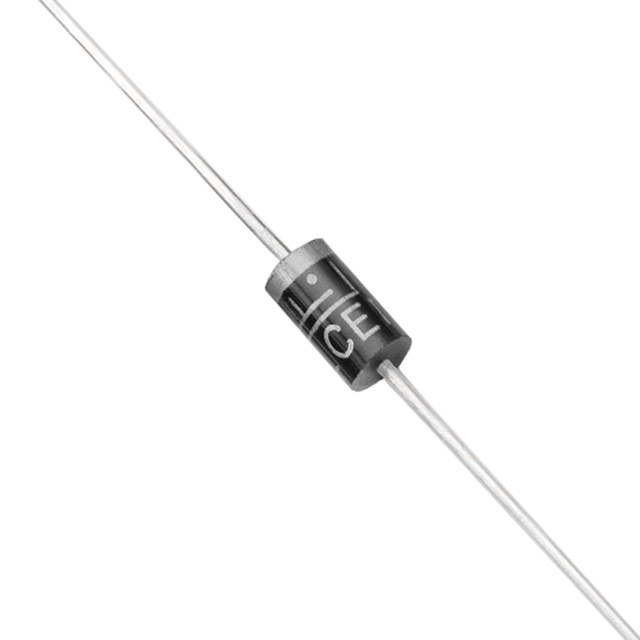

1500 WATT轴向瞬态电压抑制器 1500 WATT AXIAL TRANSIENT VOLTAGE SUPPRESSORS
52.4V Clamp 30.5A Ipp Tvs Diode Through Hole DO-201
得捷:
TVS DIODE 30.8VWM 52.4VC DO201
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this 1.5KE36 TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 49.9 V and minimum breakdown voltage is 32.4 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
Chip1Stop:
Diode TVS Single Uni-Dir 30.8V 1.5KW 2-Pin DO-201 T/R
额定电压DC 36.0 V
额定功率 1.50 kW
击穿电压 32.4 V
电路数 1
钳位电压 49.9 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 32.4 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

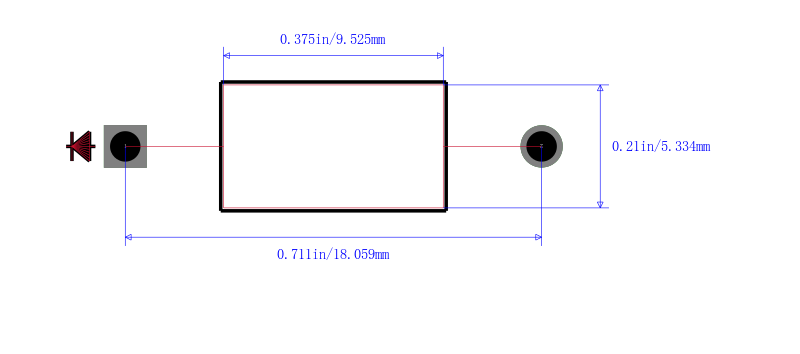

封装 DO-201
长度 9.5 mm
直径 5.30 mm
封装 DO-201
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5KE36 Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE36A 力特 | 类似代替 | 1.5KE36和1.5KE36A的区别 |
1.5KE39A 力特 | 功能相似 | 1.5KE36和1.5KE39A的区别 |
