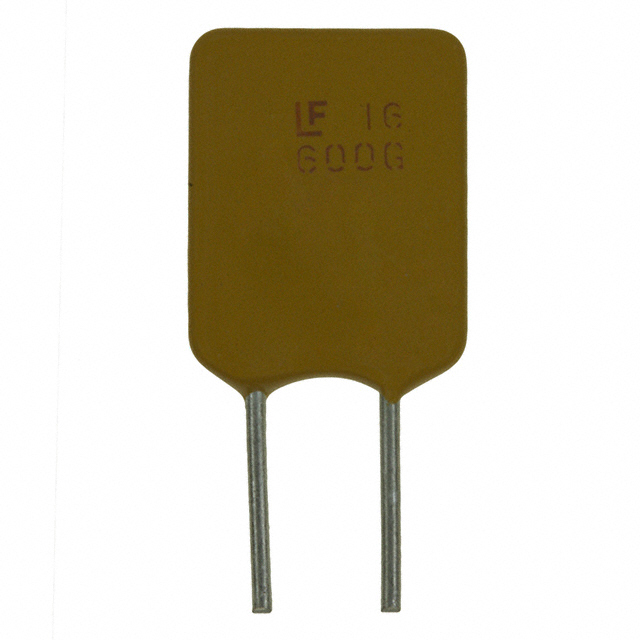

LITTELFUSE 16R600GU 自复式保险丝, PTC, 16V, 6A, 径向引线
With this PTC resettable fuse from you will no longer have to replace a fuse when it burns out. This device has a maximum current rating of 100. This part has a lead diameter of 0.81 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1typ mm. This product is 10.7Max mm long, 17.1Max mm tall and 3Max mm deep.
额定电压DC 16.0 V
工作电压 16.0 V
跳闸时间 3.3 s
耗散功率 2.8 W
保持电流 6 A
跳闸电流 10.2 A
额定电流Max 100 A
保持电流Max 6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
额定电压 16 VDC
安装方式 Through Hole
封装 Radial
高度 17.1 mm
封装 Radial
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16R600GU Littelfuse 力特 | 当前型号 | 当前型号 |
16R600GPR 力特 | 完全替代 | 16R600GU和16R600GPR的区别 |
16R600GDR 力特 | 完全替代 | 16R600GU和16R600GDR的区别 |
MC36178 Multicomp | 功能相似 | 16R600GU和MC36178的区别 |
