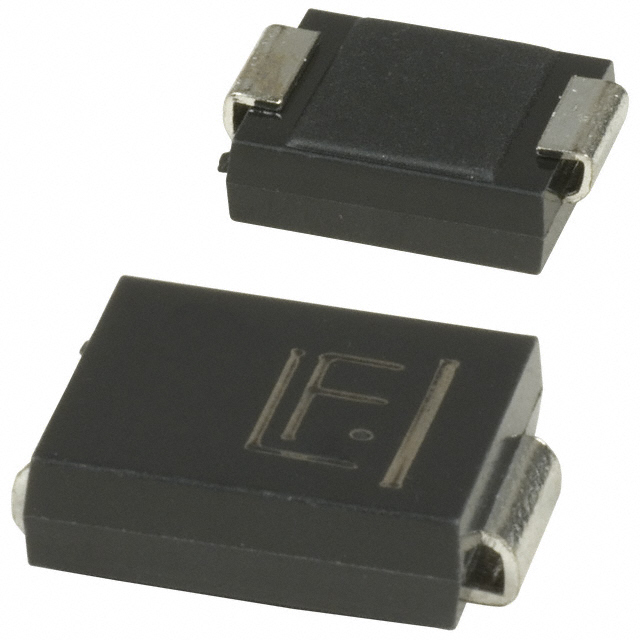

瞬态电压抑制二极管 Transient Voltage Suppression Diodes
If you"re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this TVS diode from is perfect for you. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This device"s maximum clamping voltage is 45.7 V and minimum breakdown voltage is 31.4 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
额定电压DC 33.0 V
工作电压 28.2 V
额定功率 1.50 kW
击穿电压 34.7 V
电路数 1
针脚数 2
钳位电压 45.7 V
测试电流 1 mA
最大反向击穿电压 34.7 V
脉冲峰值功率 1500 W
最小反向击穿电压 31.4 V
击穿电压 31.4 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5SMC33CA Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE33A-B 力特 | 类似代替 | 1.5SMC33CA和1.5KE33A-B的区别 |
1.5KE33CA-B 力特 | 类似代替 | 1.5SMC33CA和1.5KE33CA-B的区别 |
SM15T33CA 意法半导体 | 功能相似 | 1.5SMC33CA和SM15T33CA的区别 |
