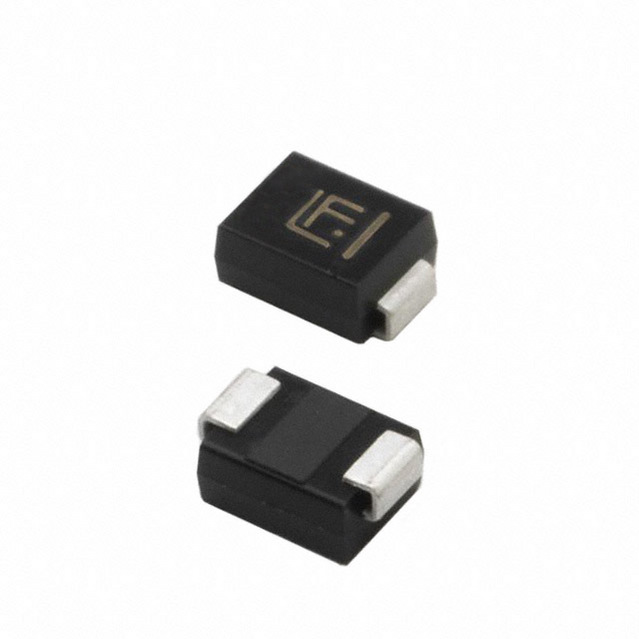

1KSMB47CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

64.8V Clamp 15.4A Ipp Tvs Diode Surface Mount DO-214AA SMBJ

得捷:
TVS DIODE 40.2VWM 64.8VC DO214AA

立创商城:
Vrwm:40.2V 1kW

艾睿:
Take the extra step in your circuitry by implementing surge protection with this 1KSMB47CA TVS diode from Littelfuse. Its peak pulse power dissipation is 1000 W. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 64.8 V and minimum breakdown voltage is 44.7 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Chip1Stop:
Diode TVS Single Bi-Dir 40.2V 1KW Automotive 2-Pin SMB T/R

Verical:
Diode TVS Single Bi-Dir 40.2V 1KW 2-Pin SMB T/R

Win Source:
TVS DIODE 40.2VWM 64.8VC SMD
