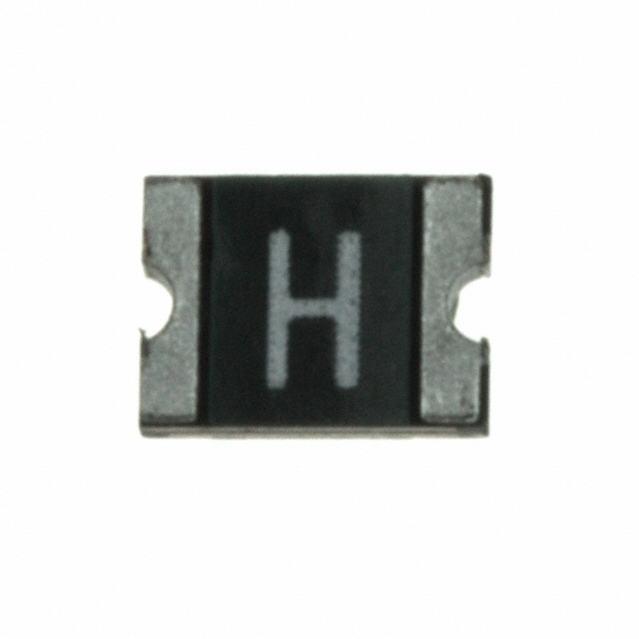

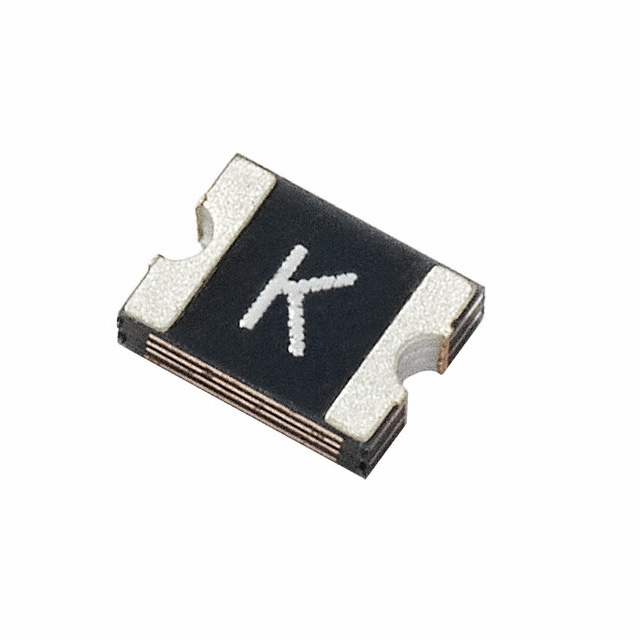

1210L系列 6V 1.1A 1210 外壳 POLYFUSE® 自恢复保险丝
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from is perfect for you! This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 0.71Max mm tall and 2.8Max mm deep.
跳闸时间 100 ms
耗散功率 0.6 W
电阻 0.21 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 100 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 8 VDC
额定电压 6 V
工作电压Max 8 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.43 mm
宽度 2.8 mm
高度 0.71 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1210L110THYR Littelfuse 力特 | 当前型号 | 当前型号 |
1210L110WR 力特 | 类似代替 | 1210L110THYR和1210L110WR的区别 |
MF-USMF110 伯恩斯 | 功能相似 | 1210L110THYR和MF-USMF110的区别 |
