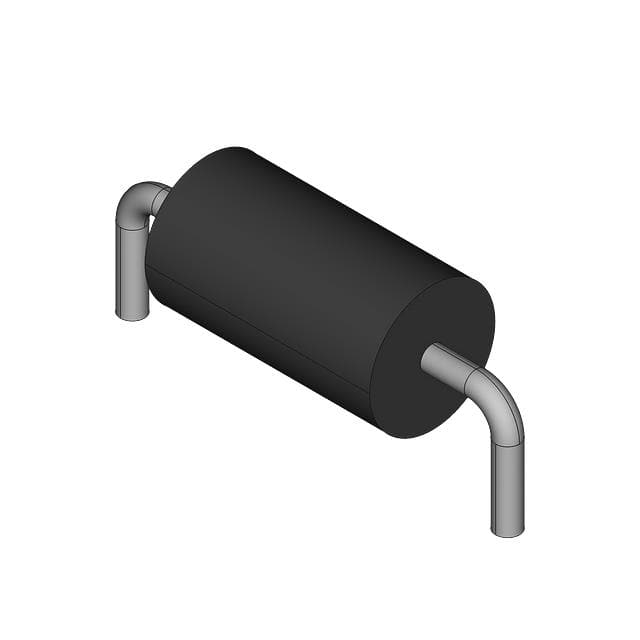

1.5KE20ARL4G

1N6267A 系列 21 V 1500 W 单向 齐纳 瞬态电压抑制二极管

1500 Watt Mosorb™ Zener Transient Voltage Suppressors

.

Mosorb devices are designed to protect voltage sensitive components from high voltage, high−energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are ’s exclusive, cost-effective, highly reliable Surmetic™ axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.

Features

• Working Peak Reverse Voltage Range − 5.8 V to 214 V

• Peak Power − 1500 Watts @ 1 ms

• ESD Rating of Class 3 >16 kV per Human Body Model

• Maximum Clamp Voltage @ Peak Pulse Current

• Low Leakage < 5 μA Above 10 V

• UL 497B for Isolated Loop Circuit Protection

• Response Time is Typically < 1 ns

• Pb−Free Packages are Available
