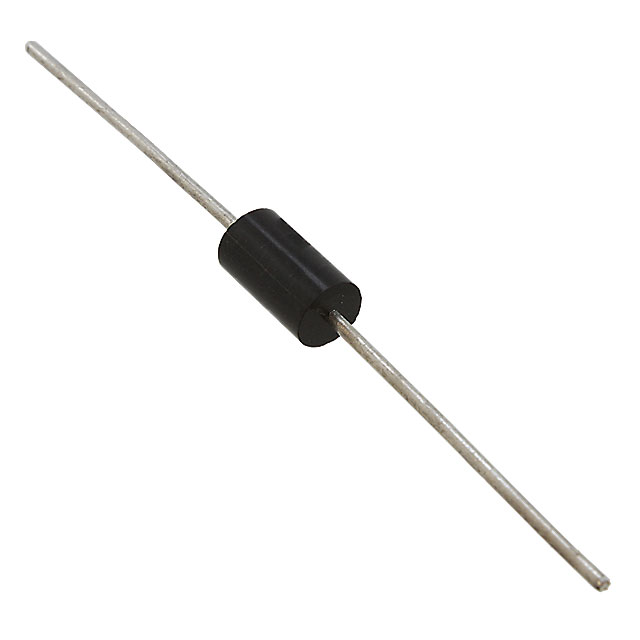

1.5KE220CA-TP

双向 185V

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 185VWM 328VC DO201AE

立创商城:
双向 Vrwm:185V 1.5kW

贸泽:
ESD Suppressors / TVS Diodes BI-DIR 1500W 4.6A

艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Micro Commercial Components&s; 1.5KE220CA-TP TVS diode. This device&s;s maximum clamping voltage is 328 V and minimum breakdown voltage is 209 V. Its test current is 1 mA. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 1500 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

Chip1Stop:
Diode TVS Single Bi-Dir 185V 1.5KW 2-Pin DO-201AE T/R

Verical:
TVS Diode Single Bi-Dir 185V 1.5KW 2-Pin DO-201AE T/R
