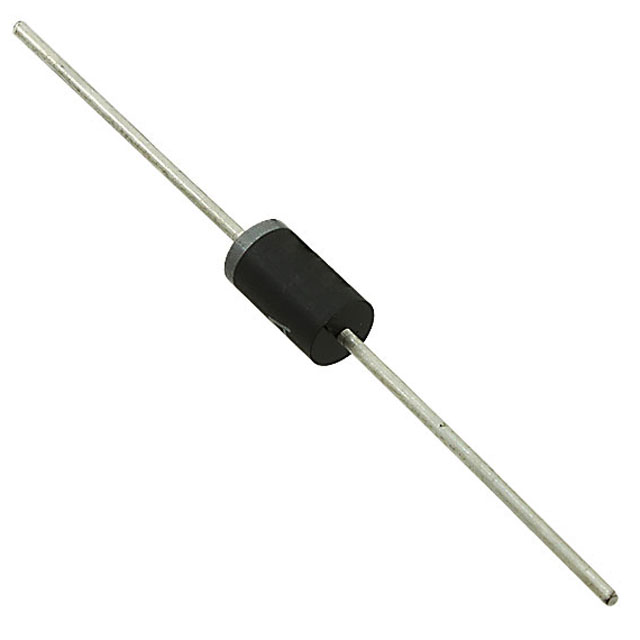

1.5KE300A-TP

单向 256V

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 256VWM 414VC DO201AE

立创商城:
单向 Vrwm:256V 1.5kW

艾睿:
Save yourself hassle by equipping your device with Micro Commercial Components&s; 1.5KE300A-TP TVS diode which will react to sudden or momentary overvoltage conditions. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 414 V and minimum breakdown voltage is 285 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Uni-Dir 256V 1.5KW 2-Pin DO-201AE T/R
