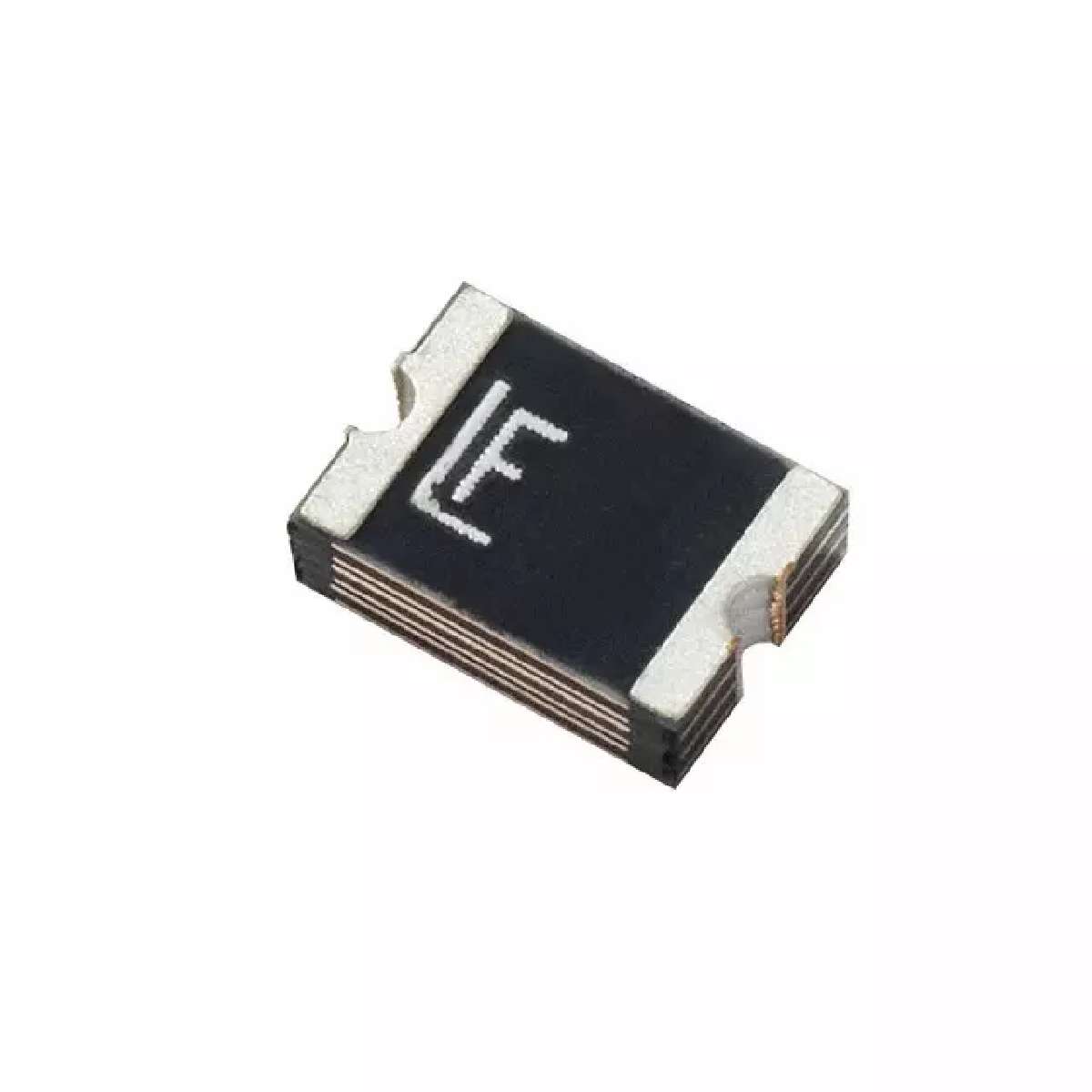

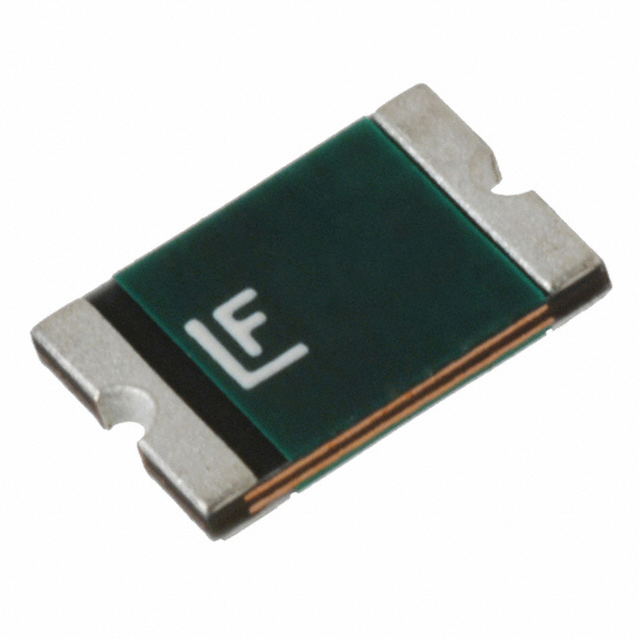

1812L系列 16V 1.25A 1812 外壳 POLYFUSE® 自恢复保险丝
POLYFUSE® Resettable PTCs
Surface Mount > 1812L Series
Description
The 1812L Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired.
Features
• RoHS compliant, lead-free and halogen-free1
• Fast response
• Compact design
• Low resistance
• Low-profile
• Compatible with high temperature solders
Applications
• Plug and play protection for motherboards and peripherals
• USB peripherals
• PCI cards
• Game console port protection
额定电压DC 15.0 V
工作电压 15 V
跳闸时间 400 ms
额定电流 1.25 A
耗散功率 0.8 W
电阻 140 mΩ
保持电流 1.25 A
跳闸电流 2.5 A
额定电流Max 100 A
保持电流Max 1.25 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 15 VDC
额定电压 15 VDC
安装方式 Surface Mount
封装公制 4532
封装 1812
长度 4.37 mm
宽度 3.07 mm
高度 1.25 mm
封装公制 4532
封装 1812
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1812L125DR Littelfuse 力特 | 当前型号 | 当前型号 |
1812L125/16DR 力特 | 功能相似 | 1812L125DR和1812L125/16DR的区别 |
250S130VZR 力特 | 功能相似 | 1812L125DR和250S130VZR的区别 |
MC36226 Multicomp | 功能相似 | 1812L125DR和MC36226的区别 |
