硅雪崩二极管 - 1500W表面贴装型瞬态电压抑制器 Silicon Avalanche Diodes - 1500W Surface Mount Transient Voltage Supressors
234V 夹子 6.5A Ipp TVS - 表面贴装型 DO-214AB（SMCJ）
得捷:
TVS DIODE 145VWM 234VC DO214AB
立创商城:
单向 Vrwm:145V 1.5kW
艾睿:
Littelfuse&s;s 1.5SMC170A TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 234 V and minimum breakdown voltage is 162 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
Win Source:
TVS DIODE 145VWM 234VC SMD
额定电压DC 170 V
工作电压 145 V
额定功率 1.50 kW
击穿电压 162 V
钳位电压 234 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 162 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2

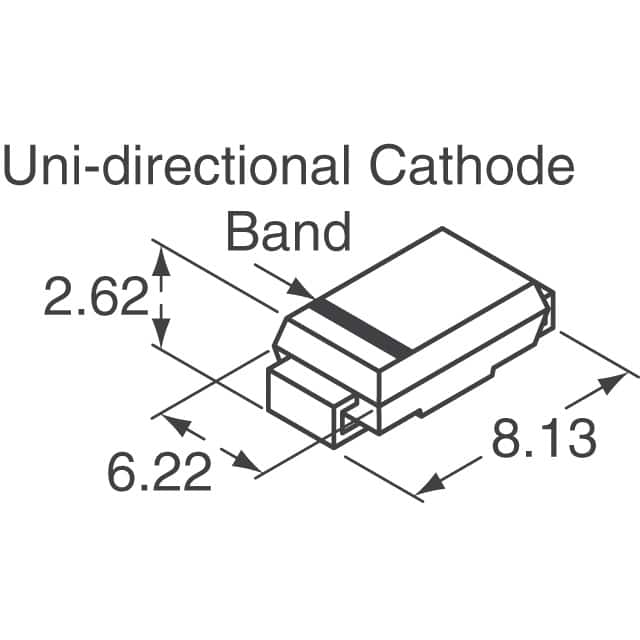

长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5SMC170A Littelfuse 力特 | 当前型号 | 当前型号 |
SMCJ150A-E3/57T 威世 | 功能相似 | 1.5SMC170A和SMCJ150A-E3/57T的区别 |
SMCJ160A-13-F 美台 | 功能相似 | 1.5SMC170A和SMCJ160A-13-F的区别 |
SMCJ150A 伯恩斯 | 功能相似 | 1.5SMC170A和SMCJ150A的区别 |
