1206L075/13.2WR

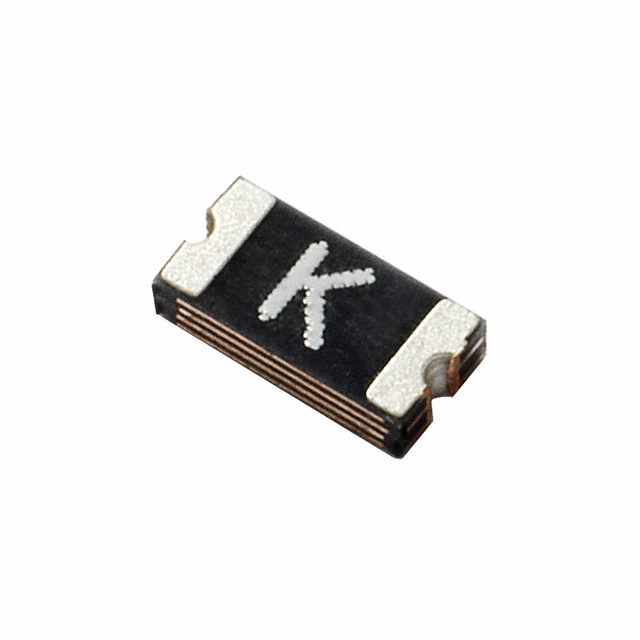

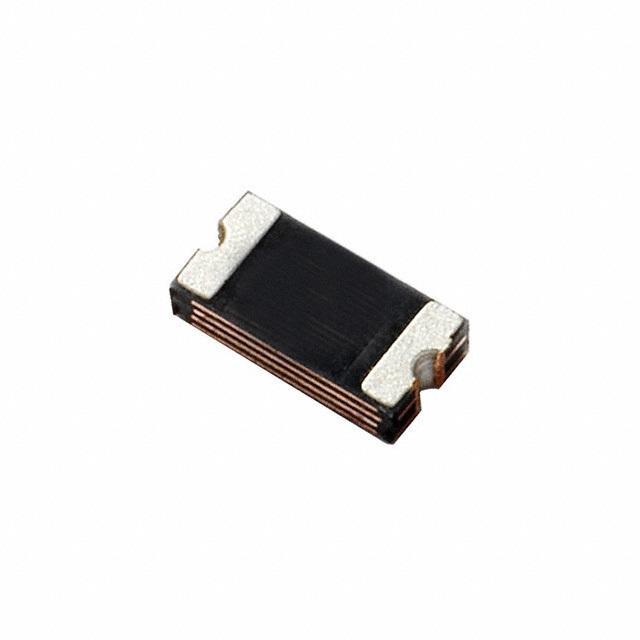

LITTELFUSE  1206L075/13.2WR  自恢复保险丝, PTC, 1206, 13.2VDC, 750mA

聚合物 PTC 自恢复保险丝 13.2V 750mA Ih 表面贴装型 1206（3216 公制），凹陷

得捷:
PTC RESET FUSE 13.2V 750MA 1206

立创商城:
13.2V 750mA

贸泽:
自恢复保险丝—PPTC PTC 13.2V POLY 1206 HALOGEN-FREE .75

艾睿:
Resuming operation after a fuse burns out has never been more convenient with this 1206L075/13.2WR PTC resettable fuse from Littelfuse! This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.5Max mm long, 1.25Max mm tall and 1.8Max mm deep.

Chip1Stop:
PTC Resettable Fuse 0.75Ahold 1.5Atrip 13.2VDC 100A 0.6W 0.2s 0.09Ohm SMD Solder Pad 1206 T/R

Verical:
PTC Resettable Fuse 0.75Ahold 1.5Atrip 13.2VDC 100A 0.6W 0.2s 0.09Ohm SMD Solder Pad 1206 T/R

Newark:
# LITTELFUSE  1206L075/13.2WR  PPTC Resettable Fuse, SMD, POLYFUSE 1206L Series, 750 mA, 1.5 A, 13.2 VDC, -40 °C
