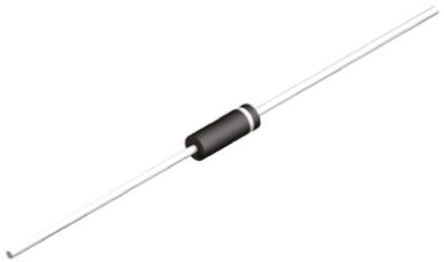

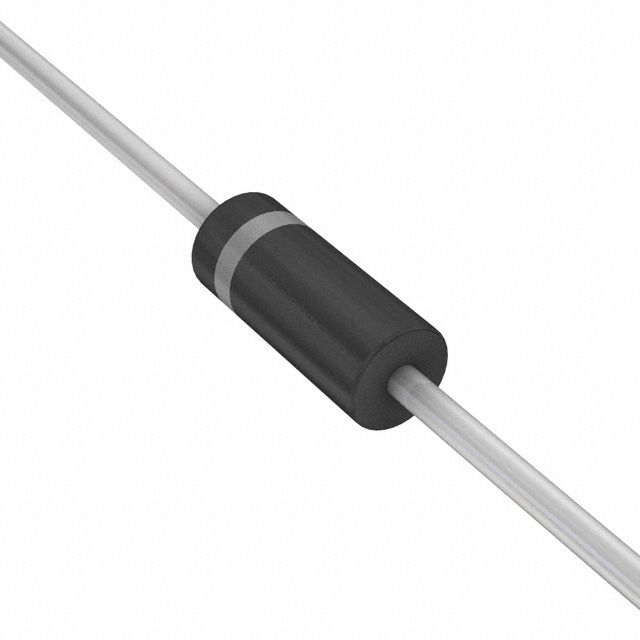

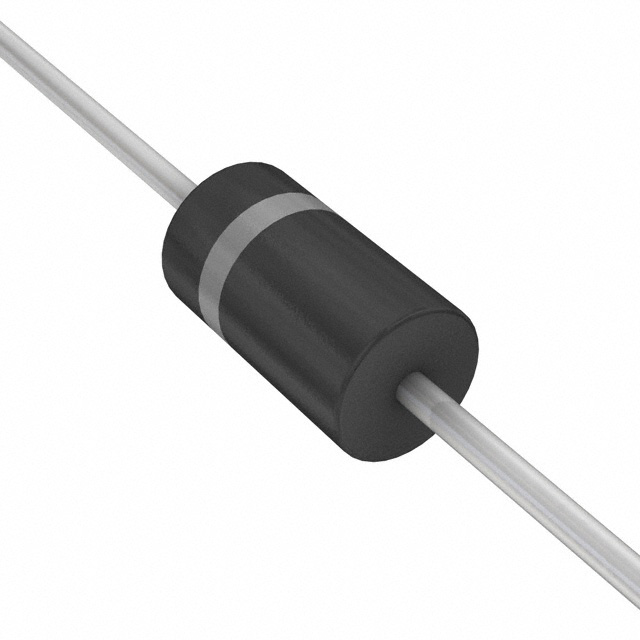

ON SEMICONDUCTOR 1N6278AG 单管二极管 齐纳, 5 W, 轴向引线, 2 引脚, 175 °C
Mosorb devices are designed to protect voltage sensitive components from high voltage, high-energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are ’s exclusive, cost-effective, highly reliable Surmetic axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.
额定电流 320 A
无卤素状态 Halogen Free
击穿电压 19 V
电路数 1
针脚数 2
耗散功率 5 W
钳位电压 27.7 V
最大反向电压(Vrrm) 17.1V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 19 V
击穿电压 19 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 41A-04
长度 9.5 mm
封装 41A-04
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Box
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N6278AG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1.5KE20ARL4G 安森美 | 完全替代 | 1N6278AG和1.5KE20ARL4G的区别 |
1.5KE20AG 安森美 | 类似代替 | 1N6278AG和1.5KE20AG的区别 |
1V5KE20A 飞兆/仙童 | 功能相似 | 1N6278AG和1V5KE20A的区别 |
