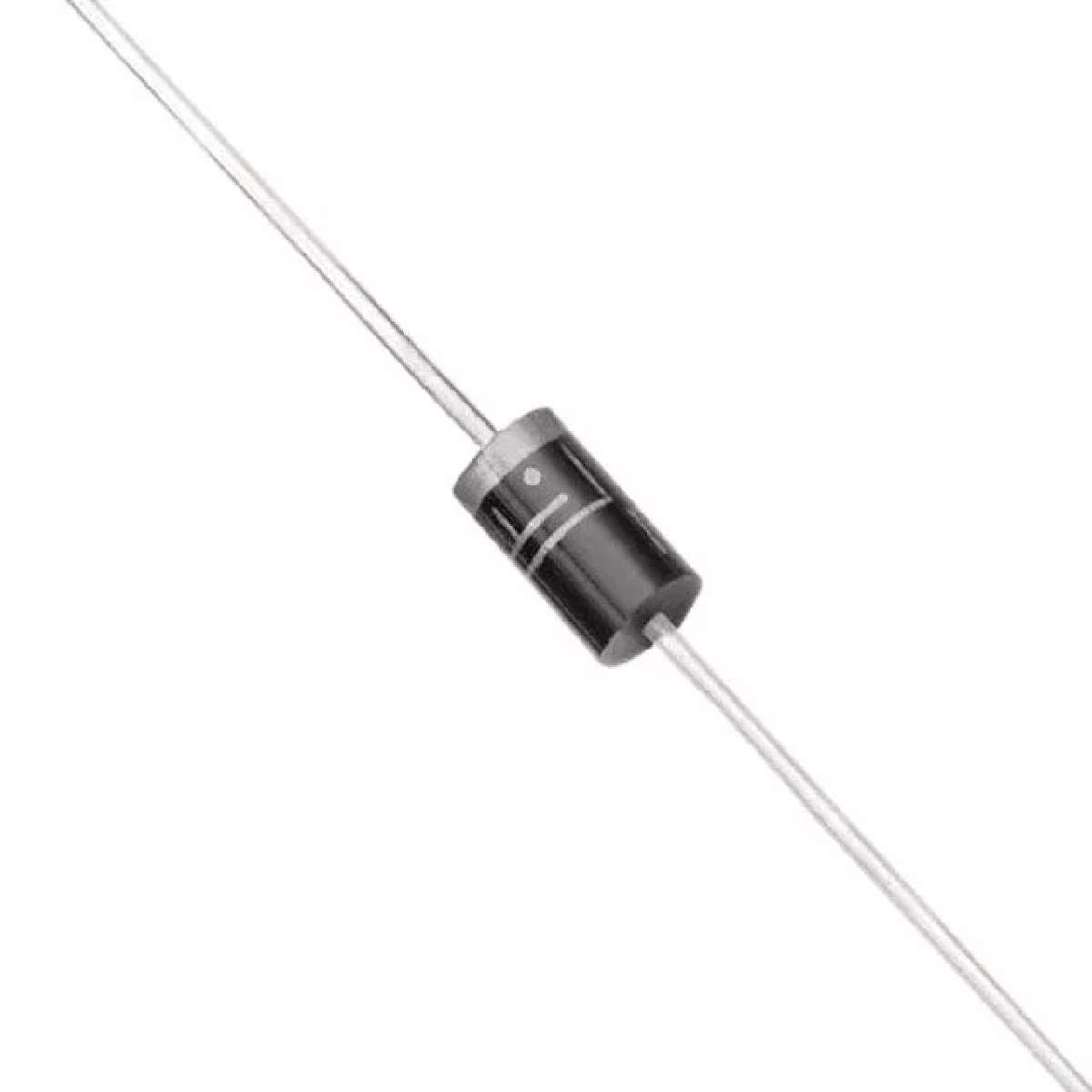

1.5KE350A-B

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Transient Voltage Suppression Diodes

Axial Leaded – 1500W > 1.5KE series

Description

The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

得捷:
TVS DIODE 300VWM 482VC DO201

立创商城:
Vrwm:300V 1.5kW

贸泽:
ESD 抑制器/TVS 二极管 1500W 300V Uni-Directional

艾睿:
This 1.5KE350A-B TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 482 V and minimum breakdown voltage is 332 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product comes packaged in bulk, so the parts will be stored loosely.

TME:
Diode: transil; 1.5kW; 350V; 3.2A; unidirectional; DO201; ±5%
