瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Transient Voltage Suppression Diodes

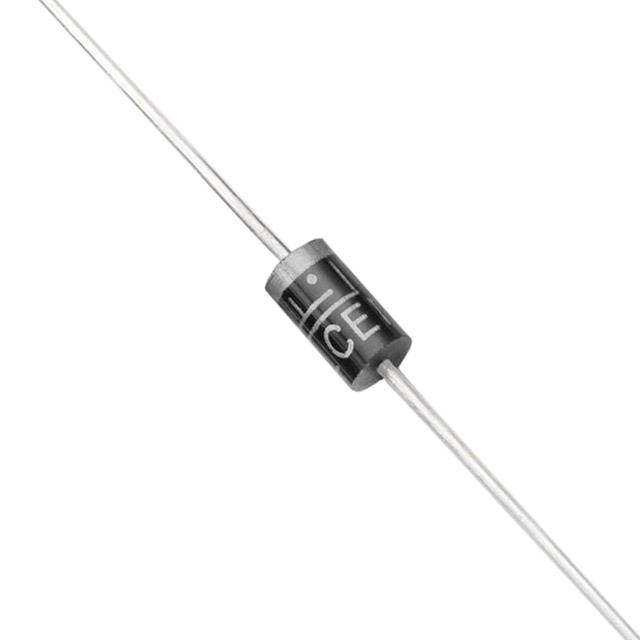

Axial Leaded – 1500W > 1.5KE series
Description
The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
得捷:
TVS DIODE 145VWM 234VC DO201
立创商城:
双向 Vrwm:145V 1.5kW
艾睿:
This 1.5KE170CA TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. Its test current is 1 mA. This device&s;s maximum clamping voltage is 234 V and minimum breakdown voltage is 162 V. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 145V 1.5KW 2-Pin DO-201 T/R
TME:
Diode: transil; 1.5kW; 170V; 6.5A; bidirectional; ±5%; DO201
Newark:
# LITTELFUSE 1.5KE170CA TVS Diode, 1.5KE Series, Bidirectional, 145 V, 234 V, DO-201, 2 Pins
额定电压DC 170 V
额定功率 1.50 kW
击穿电压 170 V
电路数 1
耗散功率 1.5 kW
钳位电压 234 V
测试电流 1 mA
最大反向击穿电压 179 V
脉冲峰值功率 1500 W
最小反向击穿电压 162 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

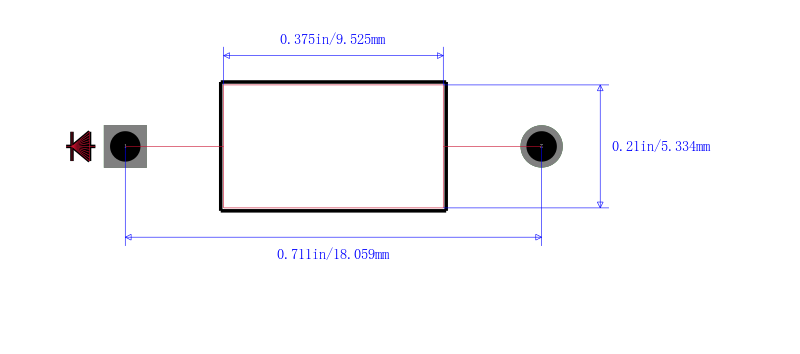

封装 DO-201
长度 9.5 mm
直径 5.30 mm
封装 DO-201
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE170CA Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE170CA-B 力特 | 完全替代 | 1.5KE170CA和1.5KE170CA-B的区别 |
1.5KE170CA-TP 美微科 | 类似代替 | 1.5KE170CA和1.5KE170CA-TP的区别 |
1.5KE170CA-T 美台 | 功能相似 | 1.5KE170CA和1.5KE170CA-T的区别 |
