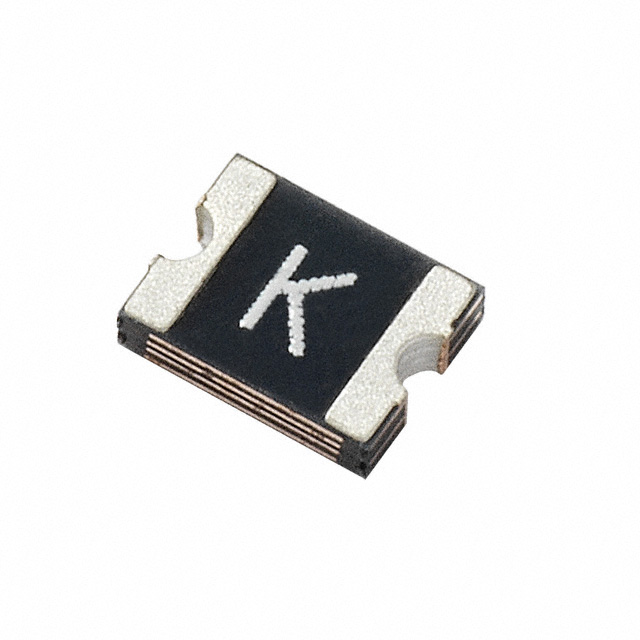

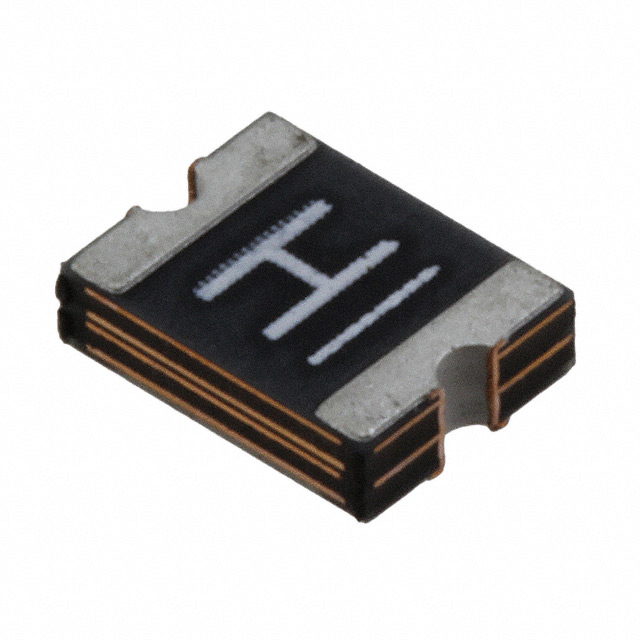

自恢复保险丝—PPTC 12V 1.10A 1210 PTC
Avoid constantly replacing burned out fuses with this PTC resettable fuse from . This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 1.25Max mm tall and 2.8Max mm deep.
跳闸时间 100 ms
额定电流 1.1 A
耗散功率 0.6MaxW
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 100 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 12 VDC
额定电压 32 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 1.25 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
