14B26-SZLB-100-0LC

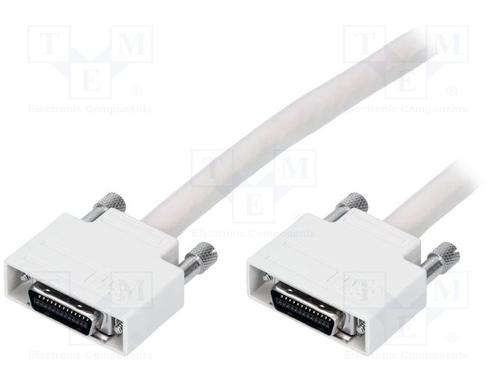

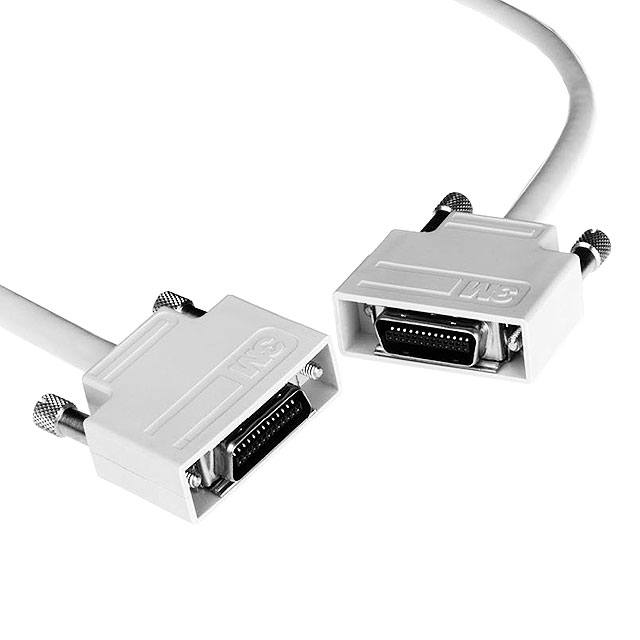

3M  14B26-SZLB-100-0LC  计算机线缆, 组件, MDR 插头, 26路, MDR 插头, 26路, 3.2ft, 1m, 米色

The 14B26 series thumbscrew shell kit MDR Mini D-ribbon Cable Assembly for 26-position high speed digital data transmission system. The device supports new Industrial CameraLink™ in automated imaging association for camera to frame grabber communications. The 14B26 is 11 shielded twin-ax pairs and four drain wires and entire cable bundle is shielded with foil and braid for additional signal protection.

.

Rugged MDR ribbon type contact

.

Rugged thumbscrew retention

.

EMI shielded junction shell in either plastic or overmolded construction

.

30V Voltage rating

.

1A Current rating

.

28AWG Stranded conductor size

.

1.25ns/ft 4.1ns/m Propagation velocity

.

50ps/m Maximum skew within pair

.

50ps/m Maximum skew channel skew per chipset

.

-20 to 75°C Temperature range
