1SD26-3120-00C-200

3M  1SD26-3120-00C-200  计算机线缆, SDR 插头, 26路, SDR 插头, 26路, 6.6ft, 2m, 灰色

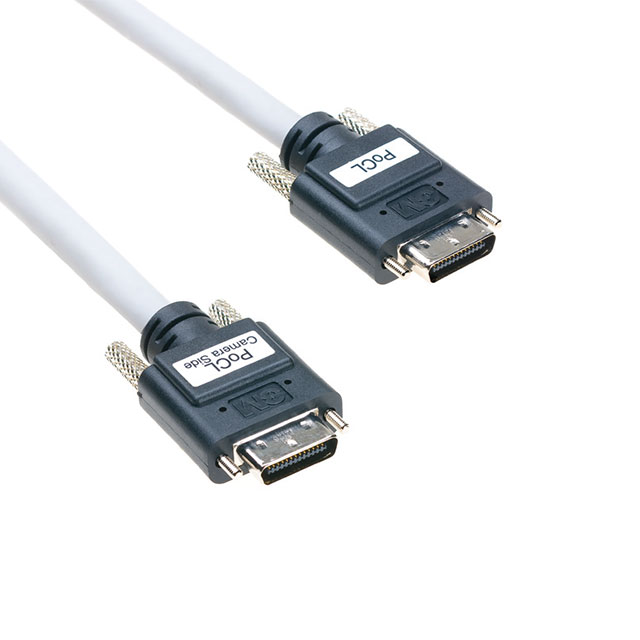

The 1SD26 series 0.8mm digital camera SDR Shrunk delta ribbon Cable Assembly with PoCL compatible, 26-position and male to male connectors. The device carries power in addition to signal to enable use in base configuration Power over Camera Link® PoCL applications and connects to Mini-Camera Link style SDR I/O ports on both PoCL camera and PoCL framegrabber.

.

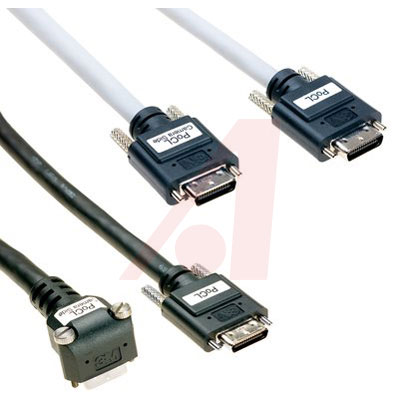

Both straight and right angle cable exit available

.

3 Shielded quads and 6 unshielded twisted pairs

.

Entire cable bundle shielded with foil and braid for additional signal protection

.

Rugged ribbon type contact for reliable, repeatable connectivity

.

Thumbscrew retention

.

EMI shielded end-to-end for reduced emissions

.

30V Voltage rating

.

0.5A Current rating

.

28AWG Stranded conductor size

.

50ps/m Maximum skew within pair

.

100ps/m Maximum skew channel skew per chipset

.

0 to 70°C Temperature range
