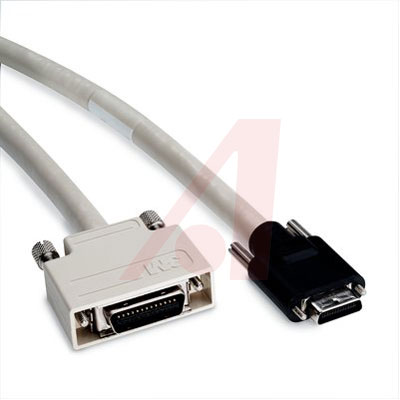

微型D电缆组件, SDR插头至MDR插头, 26 路, 6.6 ft, 2 m, 米色, 1MF26 Series
™ SDR Connector is a ribbon contact system with a .8 mm contact pitch. SDR boardmount connectors are constructed of RoHS compliant, high temp plastic bodies, 30\"b5 gold contacts, polarized, stamped metal EMI/ESD interface with installed jack sockets and supporting boardmounting hardware. Cable features 11 shielded, twisted twinax pairs with four drain wires, double overall shield with inner foil and outer braid.
* Supports New AIA Industrial Mini Camera Link© Standard
* Standard for New Mini C/L Camera to C/L Frame Grabber Applications
* Full Metal Face for Better EMI Shielding Effectiveness
* Rugged Ribbon Contact Type for Reliable Repetitive Mating
* Rugged Thumbscrew Retention
* Cable Assemblies Feature R/A Overmolded MDR Backshells Eliminate Bend Radius Issues
* RoHS Compliant
