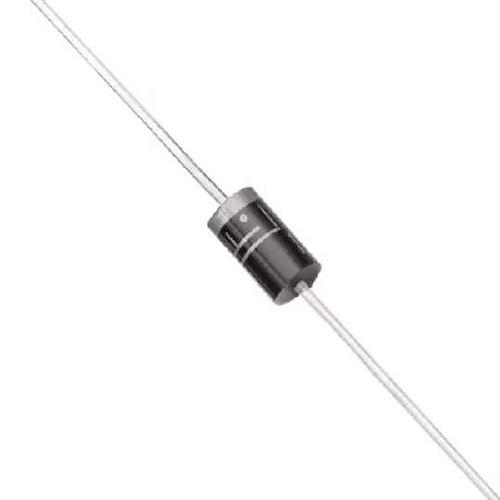

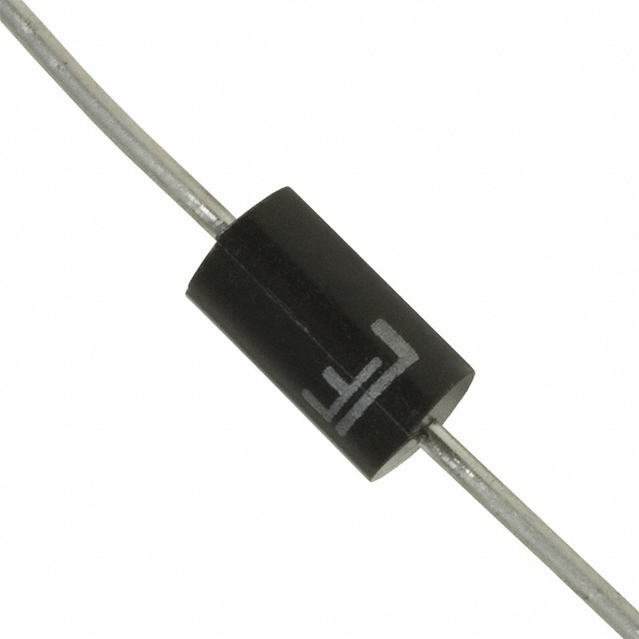

467v 1.5kw do-201双向 瞬态电压抑制二极管
760V 夹子 2A Ipp TVS - 通孔 DO-201
得捷:
TVS DIODE 468VWM 760VC DO201
立创商城:
双向 Vrwm:468V 1.5kW
艾睿:
Do not risk expensive equipment and machinery from surges with this 1.5KE550CA TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 760 V and minimum breakdown voltage is 522.5 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 495V 1.5KW 2-Pin DO-201 T/R
TME:
Diode: transil; 1.5kW; 550V; 2A; bidirectional; ±5%; DO201
Verical:
TVS Diode Single Bi-Dir 468V 1.5KW 2-Pin DO-201 T/R
Newark:
# LITTELFUSE 1.5KE550CA TVS Diode, 1.5KE Series, Bidirectional, 495 V, 760 V, DO-201, 2 Pins
额定电压DC 550 V
电容 18 pF
额定功率 1.50 kW
击穿电压 522.5 V
电路数 1
耗散功率 1500 W
钳位电压 760 V
测试电流 1 mA
最大反向击穿电压 577.5 V
脉冲峰值功率 1500 W
最小反向击穿电压 522.5 V
击穿电压 522.5 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-201
长度 9.5 mm
直径 5.30 mm
封装 DO-201
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5KE550CA Littelfuse 力特 | 当前型号 | 当前型号 |
1.5KE550CA-B 力特 | 完全替代 | 1.5KE550CA和1.5KE550CA-B的区别 |
1.5KE550C-B 力特 | 类似代替 | 1.5KE550CA和1.5KE550C-B的区别 |
1.5KE550CA-TP 美微科 | 功能相似 | 1.5KE550CA和1.5KE550CA-TP的区别 |
