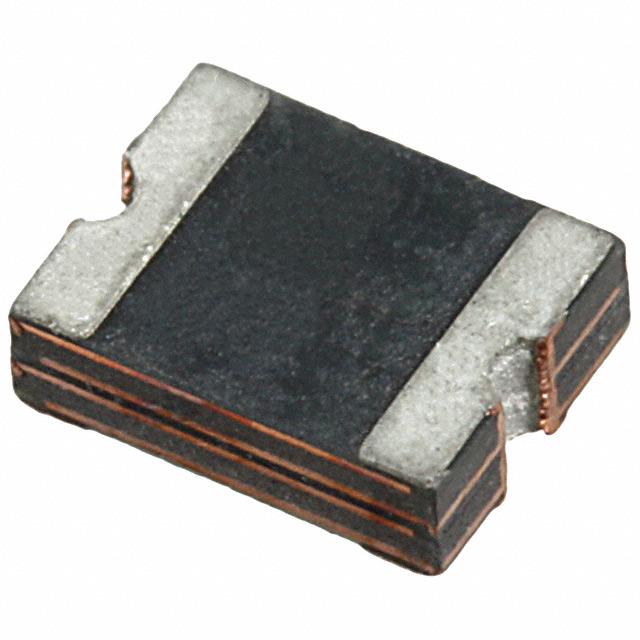

PTC Resettable Fuse 3Ahold 6Atrip 6VDC 50A 0.8W 2s 0.003Ω SMD Solder Pad 1210 T/R
This PTC resettable fuse from is an alternative to replacing burned out fuses. This device has a maximum current rating of 50. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 0.7Max mm tall and 2.8Max mm deep.
跳闸时间 2 s
耗散功率 0.8 W
保持电流 3 A
跳闸电流 6 A
额定电流Max 50 A
保持电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 0.7 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1210L300SLWR Littelfuse 力特 | 当前型号 | 当前型号 |
1210L300SLYR 力特 | 类似代替 | 1210L300SLWR和1210L300SLYR的区别 |
