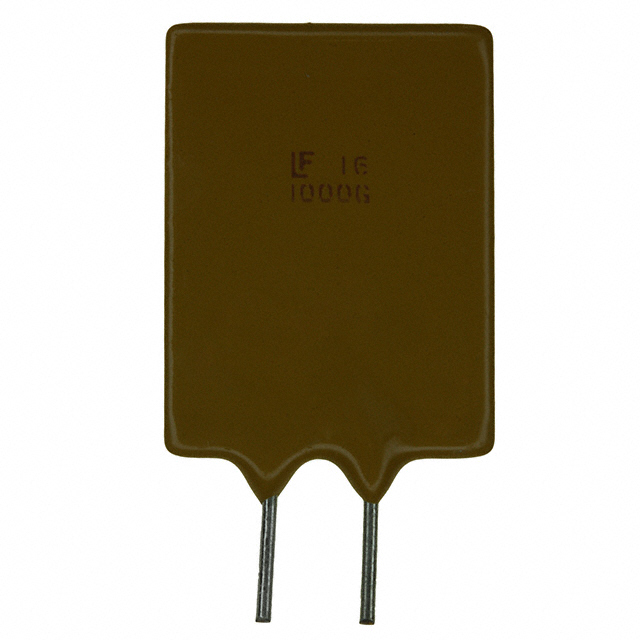

LITTELFUSE 16R1000GF 自复式保险丝, PTC, 16V, 10A, 径向引线
In the event of overcurrent or short, your circuit can resume normal operation with this positive temperature coefficient device from , without the need to replace any fuses. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product is 16.5Max mm long, 25.2Max mm tall and 3Max mm deep. This product"s terminal pitch is 5.1typ mm.
额定电压DC 16.0 V
工作电压 16 VDC
跳闸时间 6 s
耗散功率 3.6 W
电阻 0.0102 Ω
保持电流 10 A
跳闸电流 17 A
额定电流Max 100 A
保持电流Max 10 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
额定电压 16 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 16.5 mm
宽度 3 mm
高度 25.2 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16R1000GF Littelfuse 力特 | 当前型号 | 当前型号 |
RGEF1000 力特 | 类似代替 | 16R1000GF和RGEF1000的区别 |
16R1000GMR 力特 | 类似代替 | 16R1000GF和16R1000GMR的区别 |
