POLYFUSE®恢复PTC POLYFUSE® Resettable PTCs
聚合物 PTC 自恢复保险丝 16V Ih 通孔 径向，圆片式
得捷:

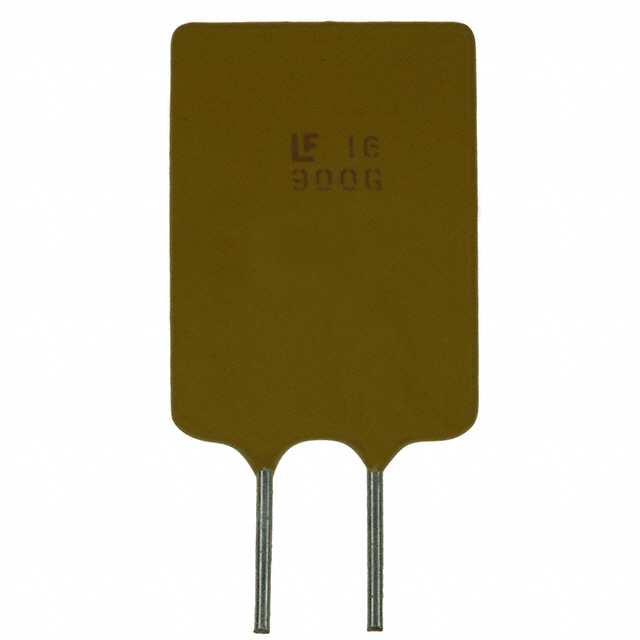

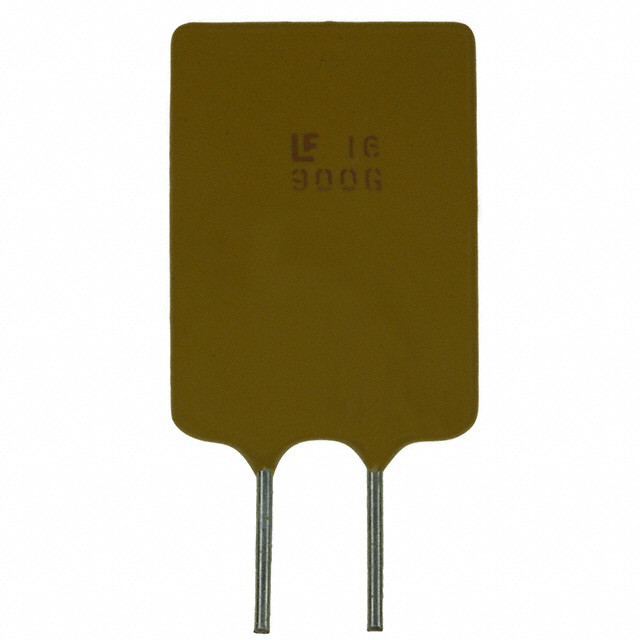

PTC RESET FUSE 16V 9A RADIAL
立创商城:
16R900GMR
艾睿:
Avoid delays in resuming normal operation with this 16R900GMR PTC resettable fuse from Littelfuse. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product&s;s terminal pitch is 5.1typ mm. This product is 14Max mm long, 21.7Max mm tall and 3Max mm deep.
Chip1Stop:
PTC Resettable Fuse 9Ahold 15.3Atrip 16VDC 100A 3.3W 5.5s 0.0047Ohm Radial 14 X 3 X 21.7mm Ammo Pack
工作电压 16.0 V
跳闸时间 5.5 s
耗散功率 3.3 W
电阻 0.0135 Ω
保持电流 9 A
跳闸电流 15.3 A
额定电流Max 100 A
保持电流Max 9 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 21.7 mm
宽度 14 mm
高度 21.7 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16R900GMR Littelfuse 力特 | 当前型号 | 当前型号 |
16R900GF 力特 | 完全替代 | 16R900GMR和16R900GF的区别 |
