1N4623-1

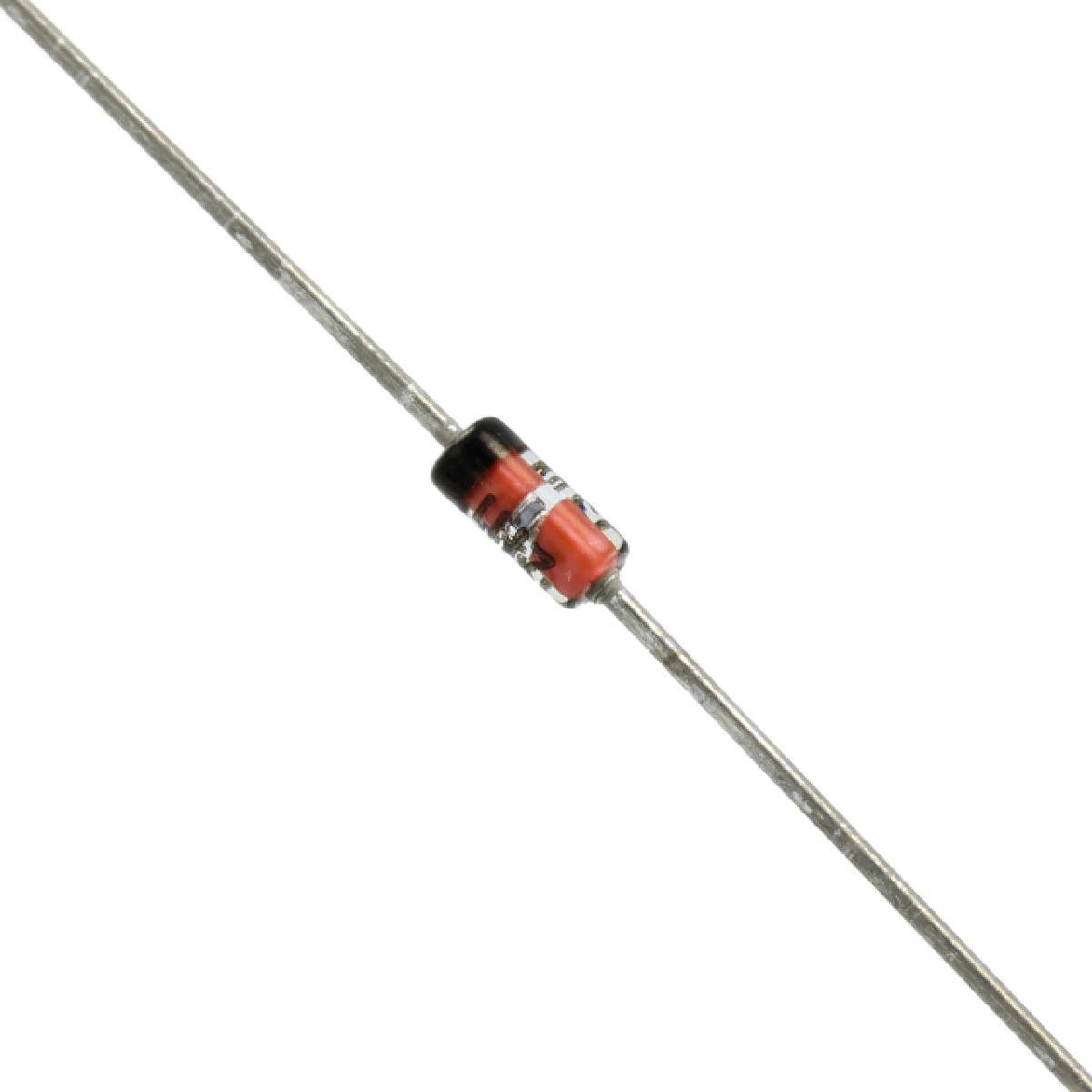

密封的玻璃柜。 DO ？ 35大纲。 Hermetically sealed glass case. DO ? 35 outline.

• 1N4614-1THRU 1N4627-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435

• LOW CURRENT OPERATION AT 250 µA

• LOW REVERSE LEAKAGE AND LOW NOISE CHARACTERISTICS

• DOUBLE PLUG CONSTRUCTION

• METALLURGICALLY BONDED

艾睿:
The best way to operate a diode in the reverse-breakdown region in your circuit is by using a voltage regulator 1N4623-1 zener diode from Microsemi. This device has a maximum regulator current of 77 mA. Its test current is 0.25 mA. Its maximum leakage current is 4 μA. Its maximum power dissipation is 500 mW. This zener device has a nominal voltage of 4.3 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C.

TME:
Diode: Zener; 500mW; 4.3V; 77mA; Package: tape; DO35; Ir:2uA

Verical:
Zener Diode Single 4.3V 5% 1600Ohm 500mW 2-Pin DO-35 Bag
