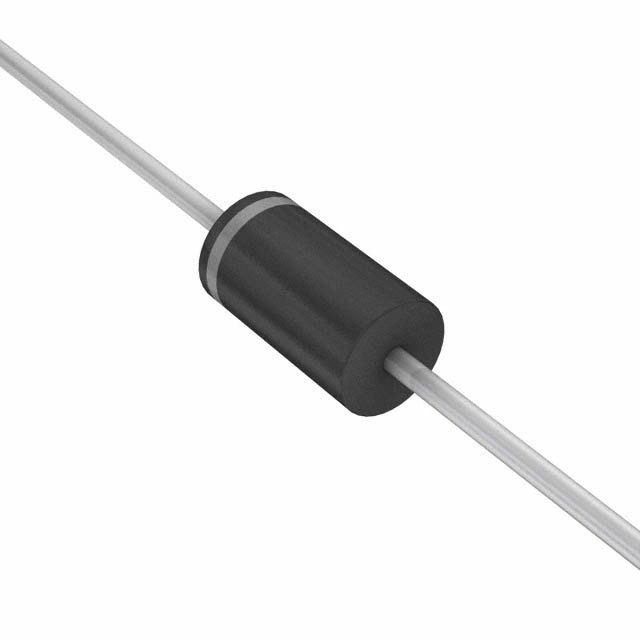

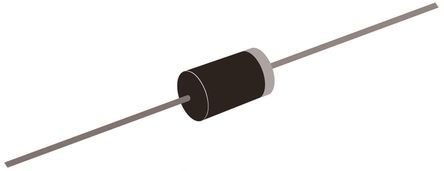

VISHAY 1.5KE540A-E3/54 二极管, TVS, 1.5KW, 540V, 1.5KE
The TRANSZORB 1.5KE series Transient Voltage Suppressor Diode offers 1500W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 175°C Operating junction temperature range
额定功率 1.5 kW
击穿电压 540 V
电路数 1
针脚数 2
钳位电压 740 V
测试电流 1 mA
最大反向击穿电压 567 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 513 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-204AL
长度 9.5 mm
封装 DO-204AL
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通用, Automotive, Lighting, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5KE540A-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1.5KE540A 力特 | 功能相似 | 1.5KE540A-E3/54和1.5KE540A的区别 |
1.5KE540A-E3/73 威世 | 功能相似 | 1.5KE540A-E3/54和1.5KE540A-E3/73的区别 |
