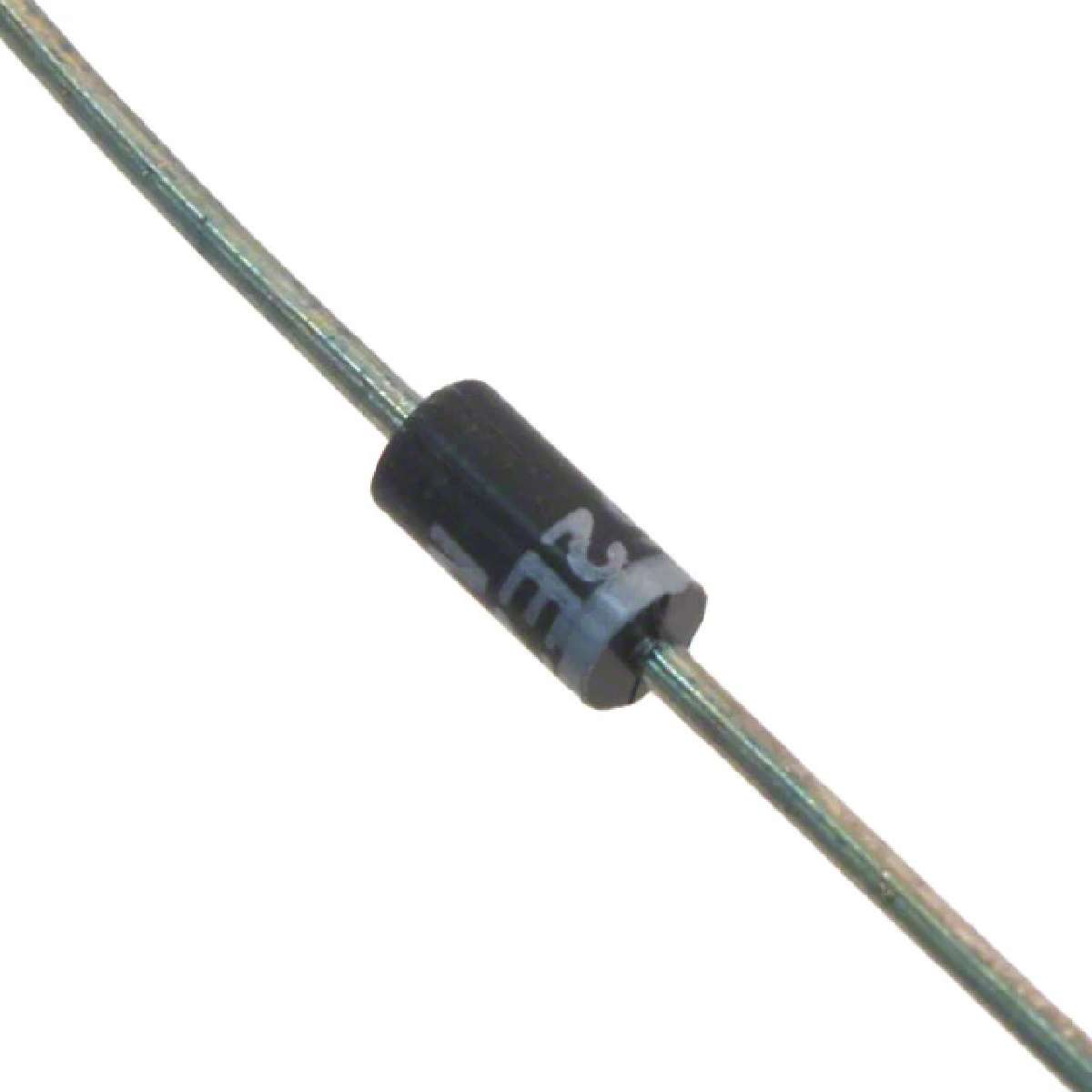

1N4735A G

Diode Zener Single 6.2V 5% 1W 2Pin DO-41

- 齐纳 ±5% 通孔 DO-204AL（DO-41）

得捷:
DIODE ZENER 6.2V 1W DO204AL

艾睿:
Need to operate a diode in the reverse-breakdown region? No worries, use a voltage regulator 1N4735A G zener diode from Microsemi. Its test current is 41 mA. Its maximum power dissipation is 1000 mW. This device has a maximum regulator current of 146@Ta=50C mA. Its maximum leakage current is 10 μA. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%.

AMEYA360:
DIODE ZENER 6.2V 1W DO204AL
