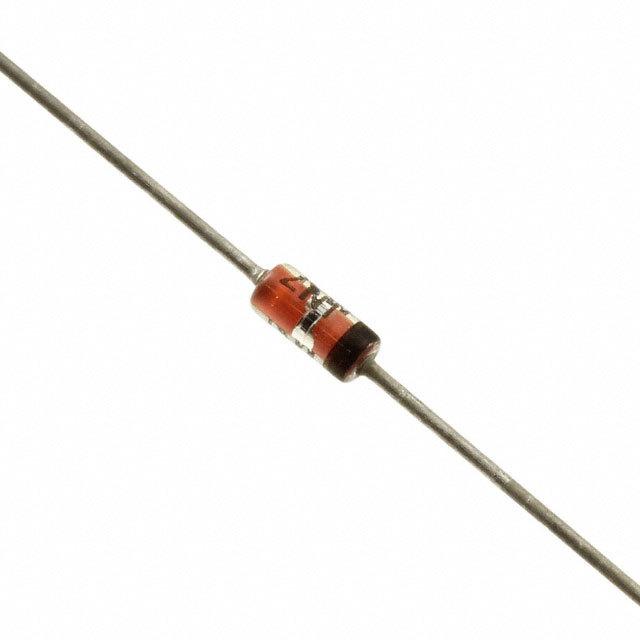

1N936B

9.0 VOLT温度补偿齐纳二极管基准二极管 9.0 VOLT TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

• 1N935B-1, 1N937B-1 AND 1N938B-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/156

• 9.0 VOLT NOMINAL ZENER VOLTAGE

• TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

• METALLURGICALLY BONDED

艾睿:
Need to run a diode in the breakdown region? No problem, use a temperature compensated 1N936B zener diode from Microsemi. Its test current is 7.5 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 10 μA. It is made in a single configuration. This zener device has a nominal voltage of 9 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 175 °C.

Verical:
Diode Zener Single 9V 5% 500mW 2-Pin DO-35 Bag
