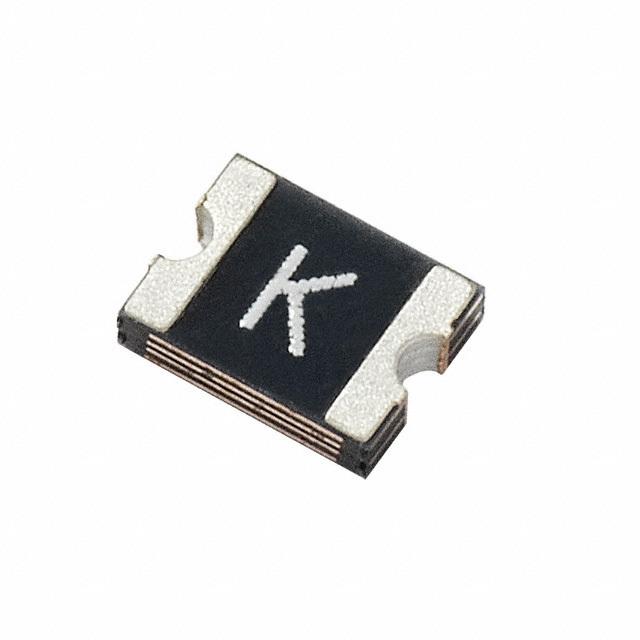

LITTELFUSE 1210L200SLYR 自复式保险丝, 2A
This positive temperature coefficient device from is an automatically resetting fuse. This device has a maximum current rating of 50. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 0.7Max mm tall and 2.8Max mm deep.
额定电压DC 6.00 V
工作电压 6 VDC
跳闸时间 3 s
耗散功率 0.8 W
保持电流 2 A
跳闸电流 4 A
额定电流Max 50 A
保持电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 VDC
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 0.7 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
