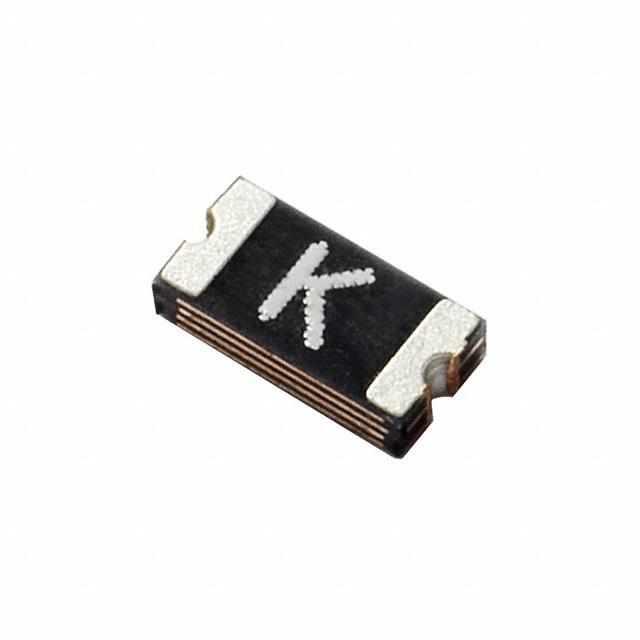

3.5A 6V 可恢复保险丝
聚合物 PTC 自恢复保险丝 6V 3.5 A Ih 表面贴装型 1206(3216 公制),凹陷
得捷:
PTC RESET FUSE 6V 3.5A 1206
立创商城:
3.5A 6V 可恢复保险丝
艾睿:
Avoid constantly replacing burned out fuses with this 1206L350SLTHYR PTC resettable fuse from Littelfuse. This device has a maximum current rating of 50. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.4Max mm long, 0.75Max mm tall and 1.8Max mm deep.
Chip1Stop:
PTC Resettable Fuse 3.5Ahold 7Atrip 6VDC 50A 0.8W 5s 0.003Ohm SMD Solder Pad 1206 T/R
Newark:
# LITTELFUSE 1206L350SLTHYR PPTC Resettable Fuse, SMD, POLYFUSE LoRho Series, 3.5 A, 7 A, 6 VDC, -40 °C
Win Source:
PTC RESET 6V LO RHO 1206 3.50A
额定电压DC 6.00 V
工作电压 6.00 V
跳闸时间 5 s
耗散功率 0.8 W
电阻 0.018 Ω
保持电流 3.5 A
跳闸电流 7 A
额定电流Max 50 A
保持电流Max 3.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.75 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
