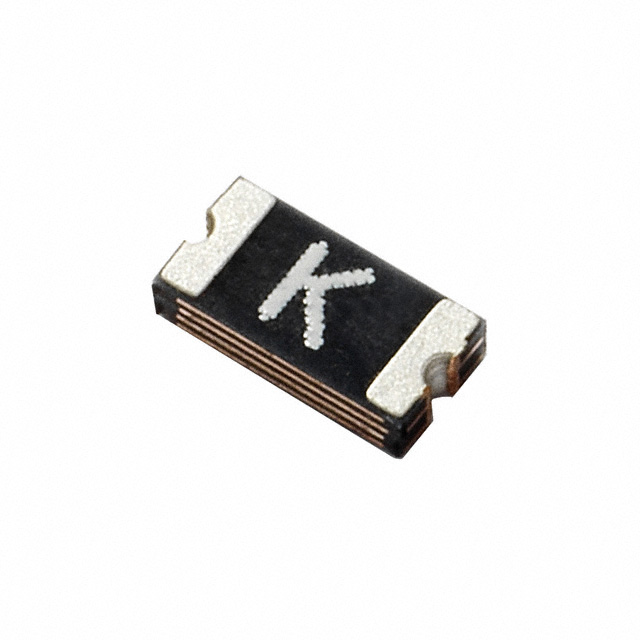

PTC Resettable Fuse 3Ahold 6Atrip 6VDC 50A 0.8W 4s 0.003Ω SMD Solder Pad 1206 T/R
聚合物 PTC 自恢复保险丝 6V Ih 表面贴装型 1206（3216 公制），凹陷
得捷:
PTC RESET FUSE 6V 3A 1206
立创商城:
6V 3A
贸泽:
Resettable Fuses - PPTC 6V POLYFUSE 1206 LoRho SL 3.00A
艾睿:
Resuming operation after a fuse burns out has never been more convenient with this 1206L300SLTHYR PTC resettable fuse from Littelfuse! This device has a maximum current rating of 50. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.4Max mm long, 0.8Max mm tall and 1.8Max mm deep.
Chip1Stop:
PTC Resettable Fuse 3Ahold 6Atrip 6VDC 50A 0.8W 4s 0.003Ohm SMD Solder Pad 1206 T/R
Verical:
PTC Resettable Fuse 3Ahold 6Atrip 6VDC 50A 0.8W 4s 0.003Ohm SMD Solder Pad 1206 T/R
Newark:
# LITTELFUSE 1206L300SLTHYR PPTC Resettable Fuse, SMD, POLYFUSE LoRho Series, 3 A, 6 A, 6 VDC, -40 °C
额定电压DC 6.00 V
工作电压 6.00 V
跳闸时间 4 s
额定电流 50 A
耗散功率 0.8 W
电阻 0.02 Ω
保持电流 3 A
跳闸电流 6 A
额定电流Max 50 A
保持电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.4 mm
宽度 1.8 mm
高度 0.8 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
